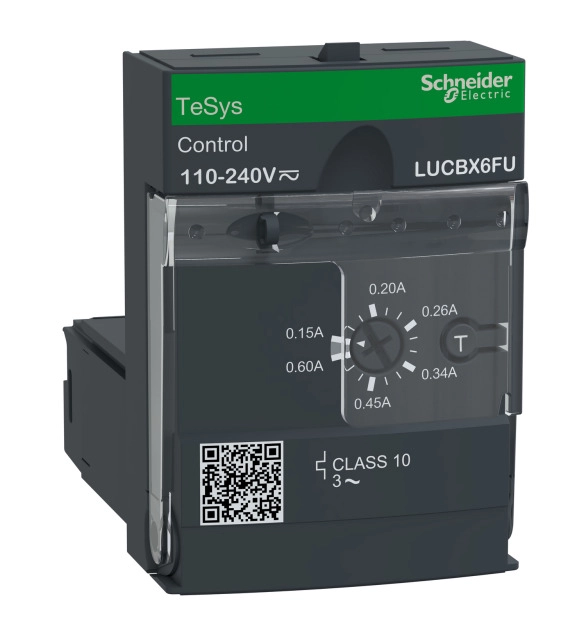

Усъвършенстван блок за управление, TeSys Ultra, 3P, от 0,15 до 0,6A, 690VAC, защита и диагностика, клас 10, бобина от 110 до 240VAC/DC

• Brand
  Schneider Electric
• Type of electrical connection of main circuit
  EV000415
• Depth
  60
• Degree of protection (IP)
  EV006415
• Suitable for emergency stop
  FALSE
• Voltage type for actuating
  EV000509
• Supporting protocol for SERCOS
  FALSE
• Supporting protocol for INTERBUS-Safety
  FALSE
• Supporting protocol for AS-Interface Safety at Work
  FALSE
• Supporting protocol for DeviceNet Safety
  FALSE
• Supporting protocol for EtherNet/IP
  FALSE
• Supporting protocol for Foundation Fieldbus
  FALSE
• Supporting protocol for SafetyBUS p
  FALSE
• Supporting protocol for PROFINET CBA
  FALSE
• Supporting protocol for PROFINET IO
  FALSE
• Supporting protocol for PROFIsafe
  FALSE
• Supporting protocol for ASI
  FALSE
• Supporting protocol for PROFIBUS
  FALSE
• Supporting protocol for TCP/IP
  FALSE
• Supporting protocol for CAN
  FALSE
• Supporting protocol for INTERBUS
  FALSE
• Supporting protocol for DeviceNet
  FALSE
• Supporting protocol for Modbus
  FALSE
• Supporting protocol for Data-Highway
  FALSE
• Supporting protocol for LON
  FALSE
• Supporting protocol for SUCONET
  FALSE
• Rated control supply voltage Us at AC 50HZ
  110
• Rated control supply voltage Us at AC 60HZ
  110
• With transformer
  FALSE
• Ambient temperature, upper operating limit
  70
• External reset possible
  FALSE
• Type of electrical connection for auxiliary- and control current circuit
  EV000415
• Width
  45
• Coordination class according to IEC 60947-4-3
  EV006627
• Rail mounting possible
  TRUE
• Supporting protocol for other bus systems
  FALSE
• With fuse
  FALSE
• With short-circuit release
  TRUE
• Rated control supply voltage Us at DC
  110
• Rated operation power at AC-3, 400 V
  0.09
• Release class
  EV008931
• Height
  66
• Temperature compensated overload protection
  TRUE
• Type of motor starter
  EV000154
• Overload release current setting
  0.15
• Number of auxiliary contacts as normally closed contact
• Number of auxiliary contacts as normally open contact
• Number of indicator lights
• Number of command positions
• Rated conditional short-circuit current, type 1, 480 Y/277 V
  0.15
• Rated conditional short-circuit current, type 2, 230 V
  0.15
• Rated operation current Ie
  0.15
• Rated conditional short-circuit current, type 1, 600 Y/347 V
  0.6
• Rated operation current at AC-3, 400 V
  0.6
• Rated conditional short-circuit current, type 2, 400 V
  0.6
