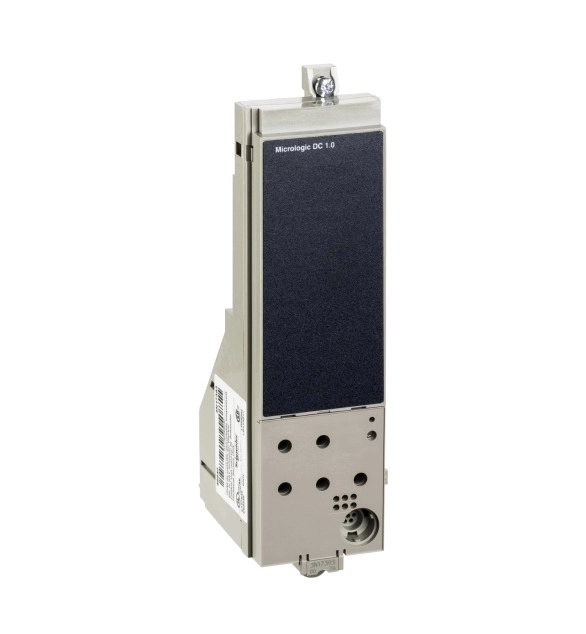

Trip unit Micrologic 1.0 DC, MasterPact NW 10DC/40DC, drawout, type H, 1250A/2500A, 3P, poles coupling version D

• Brand
  Schneider Electric
• Rated control supply voltage Us at DC
  24
• Type of motor protection
  EV014005
• Voltage type for actuating
  EV009206
• Initial value of the undelayed short-circuit release - setting range
  6400
• End value adjustment range undelayed short-circuit release
  48000
• Overload release current setting
  252
• Rated permanent current Iu
  3200
• Short-circuit release function
  EV003977
• With ground fault protection function
  FALSE
