СКУ: 31146

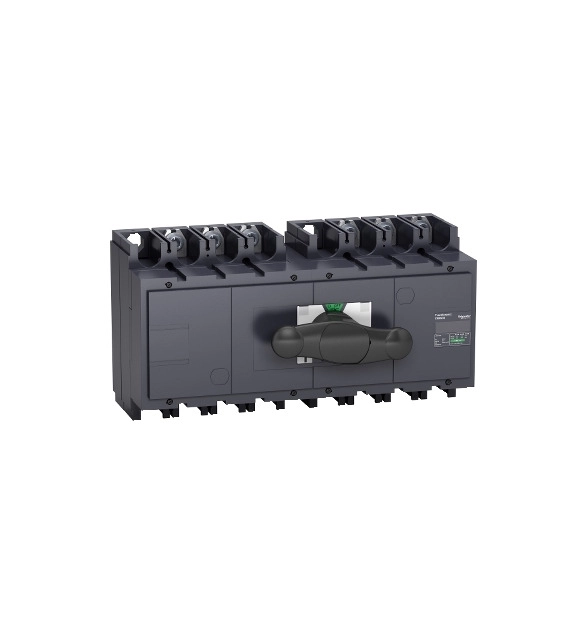

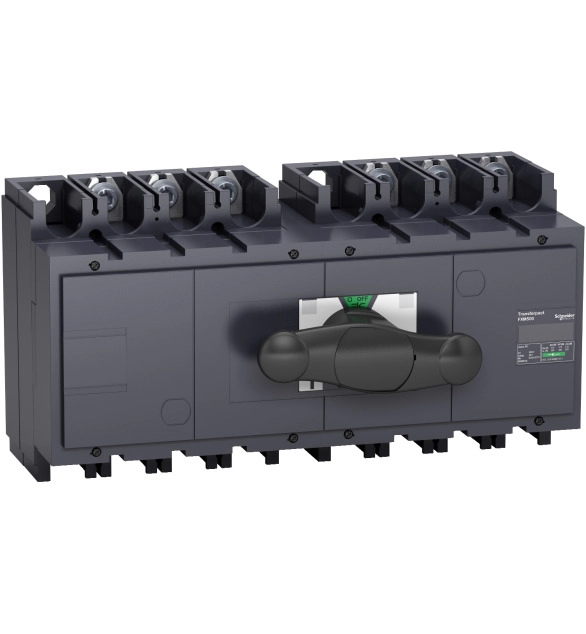

Тов.прекъсвач за ръчно превкл.на захранв. INS250 250A 3P I-0-II

  • Brand
    Schneider Electric
  • Type of electrical connection of main circuit
    EV000415
  • Number of auxiliary contacts as normally closed contact
  • Number of auxiliary contacts as change-over contact
  • Number of auxiliary contacts as normally open contact
  • Suitable for distribution board installation
    FALSE
  • Suitable for intermediate mounting
    FALSE
  • Suitable for floor mounting
    FALSE
  • Type of control element
    EV004095
  • Number of poles
    4
  • Degree of protection (IP), front side
    EV006415
  • With zero (off) position
    TRUE
  • With retraction in 0-position
    FALSE
  • Model
    EV009208
  • Complete device in housing
    TRUE
  • Suitable for front mounting
    FALSE
  • Rated permanent current Iu
    320

FXM160 is a complete manual source changeover assembly for two Compact INS250-160 4 poles switch disconnectors. It provides an easy way to implement source changeover functions with small size, taking up less room in the switchboard. The operational current is 160A at 690VAC 50/60Hz, in categories AC22A/AC23A. The operational current is 160A at 125VDC (2 poles in series) or at 250VDC (4 poles in series), in categories DC22A/DC23A. There is a single 3 position rotary handle that controls the two switch disconnectors (normal source ON, OFF, replacement source ON). A complete source changeover assembly can be ordered with a single catalogue number.
