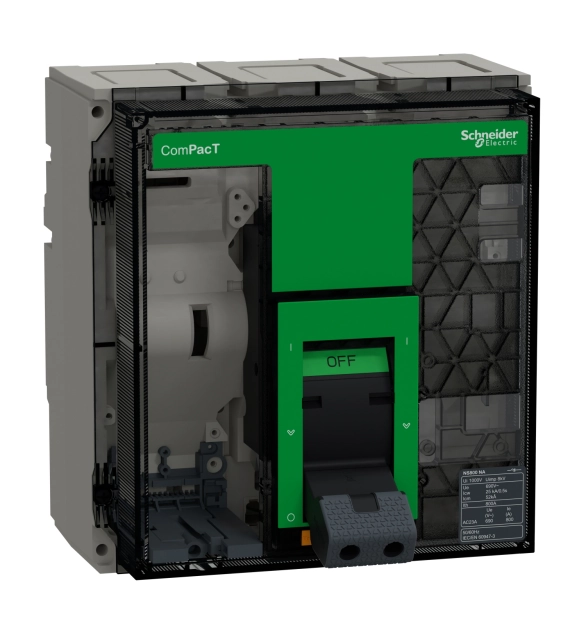

Товаров разединител основен корпус, ComPacT NS800 тип NA, 3P, фиксиран, ръчно управление, 800A

This product is a 3 poles ComPacT NS800NA switch disconnector frame used to control and isolate electrical distribution circuits. This device is in fixed mounting mode and is manually operated. It is possible to add as an option the new wireless auxiliary contact OF/SD in ZigBee communication protocol. This ComPacT NS800NA is a 3 poles switch disconnector used to control and isolate electrical distribution circuits. ComPacT NS is designed to optimize space and breaking capacity, it is an optimal choice for all standard and specific applications. The operational current (Ie) is 800A (AC23A), and the conventional thermal current (Ith) is 800A at 60°C. The operational voltage is 690VAC 50/60Hz. The short-circuit making capacity (Icm) is 52kA peak. The short-time withstand current (Icw) is 25kA rms/0.5s and 19.2kA rms/1s. The switch disconnector is manually operated with its toggle. This product comes with a variety of optional functions and accessories. This product comes with a variety of optional functions and accessories. The dimensions are 327mm (Heigh) x 210mm (Width) x 147mm (Depth). It is compliant with IEC 60947-1 and IEC60947-3 international standards. ComPacT NS can be integrated within Schneider Electric EcoStruxure Power architecture. ComPacT NS is part of the global Schneider Electric Environmental Program.
