СКУ: C100S3WM

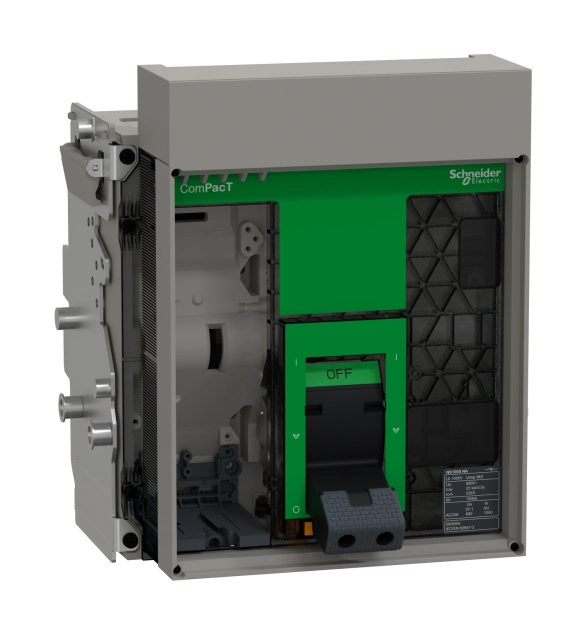

Товаров разединител основен корпус, ComPacT NS1000 тип NA, 3P, изваждаем, ръчно управление, 1000A
-
Brand
Schneider Electric
-
Type of electrical connection of main circuit
EV000415
-
Version as emergency stop installation
FALSE
-
Version as reversing switch
FALSE
-
Max. rated operation voltage Ue AC
690
-
Number of poles
3
-
Device construction
EV009211
-
Version as safety switch
FALSE
-
Suitable for front mounting 4-hole
TRUE
-
Number of switches
1
-
Motor drive integrated
FALSE
-
Suitable for intermediate mounting
FALSE
-
Motor drive optional
FALSE
-
Suitable for front mounting centre
FALSE
-
Version as main switch
TRUE
-
Interlockable
TRUE
-
Version as maintenance-/service switch
TRUE
-
Colour control element
EV000206
-
Suitable for distribution board installation
TRUE
-
Degree of protection (IP), front side
EV006415
-
Suitable for floor mounting
TRUE
-
Rated permanent current Iu
1000
-
Rated permanent current at AC-23, 400 V
1000
-
Type of control element
EV000421
-
Voltage release optional
TRUE
-
Rated short-time withstand current lcw
25
-
Rated operating voltage
220
-
Number of auxiliary contacts as normally closed contact
-
Number of auxiliary contacts as normally open contact
-
Number of auxiliary contacts as change-over contact
This product is a 3 poles ComPacT NS1000NA switch disconnector frame used to control and isolate electrical distribution circuits. This device is withdrawable and is manually operated. It is possible to add as an option the new wireless auxiliary contact OF/SD in ZigBee communication protocol. This switch disconnector frame has to be installed inside a chassis, which has to be ordered separately through the ComPacT NS product selector. ComPacT NS is designed to optimize space and breaking capacity, it is an optimal choice for all standard and specific applications. The operational current (Ie) is 1000A (AC23A), and the conventional thermal current (Ith) is 1000A at 60°C. The operational voltage is 690VAC 50/60Hz. The short-circuit making capacity (Icm) is 52kA peak. The short-time withstand current (Icw) is 25kA rms/0.5s and 19.2kA rms/1s. The switch disconnector is manually operated with its toggle. This product comes with a variety of optional functions and accessories. This product comes with a variety of optional functions and accessories. The dimensions are 327mm (Heigh) x 210mm (Width) x 147mm (Depth). It is compliant with IEC 60947-1 and IEC60947-3 international standards. ComPacT NS can be integrated within Schneider Electric EcoStruxure Power architecture. ComPacT NS is part of the global Schneider Electric Environmental Program.
