СКУ: GS2JB3

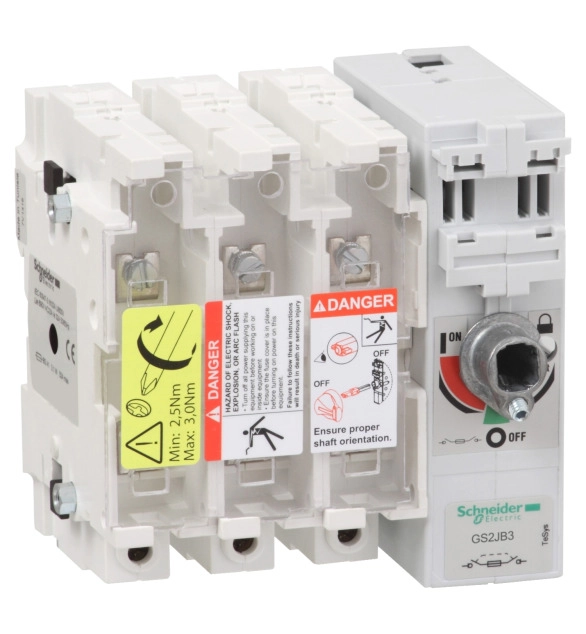

Товаров разединител fuse, TeSys GS, 3P, 100A, fuse type BS, size A4

  • Brand
    Schneider Electric
  • Type of electrical connection of main circuit
    EV000415
  • Version as emergency stop installation
    FALSE
  • Number of poles
    3
  • Version as safety switch
    FALSE
  • Degree of protection (IP), front side
    EV006405
  • Motor drive integrated
    FALSE
  • Suitable for floor mounting
    FALSE
  • Motor drive optional
    FALSE
  • Version as main switch
    TRUE
  • Rated permanent current Iu
    100
  • Suitable for front mounting
    FALSE
  • Cable entry
    EV000154
  • Type of control element
    EV005987
  • Suitable for busbar mounting
    TRUE
  • Conditioned rated short-circuit current Iq
    100
  • Max. rated operation voltage Ue AC
    750
  • Equipped with connectors
    FALSE
  • With error protection
    FALSE
  • Position control element
    EV000154
  • Rated short-time withstand current lcw
    100
  • Rated operation power at AC-23, 400 V
    51
  • Suitable for fuses
    EV009246

TeSys GS fuse switch-disconnector, 3 poles (3P), 100A/750V, to be used with type BS fuse links size A4 up to 100A, for motor applications up to 51kW@400V AC-23. To be equipped with an external front side or right-hand side mounting operating handle GS2AH (several models available). When the Product Is Used outside a control panel or for Voltage >=500Vac, Screw terminals to be equipped with upstream and downstream 3P terminal shrouds GS1AP33 (to be ordered separately), it provides high short circuit current rating 100kA@400V. Add-on auxiliary contact modules front mounting GS1AM (early-break and position signaling) can complete the assembly (to be ordered separately). Multi standards certified (IEC, Marine).
