СКУ: C104100S
Товаров прекъсвач NSX100NA AC 4P 100A
-
Brand
Schneider Electric
-
Type of electrical connection of main circuit
EV000415
-
Version as emergency stop installation
FALSE
-
Version as reversing switch
FALSE
-
Max. rated operation voltage Ue AC
690
-
Device construction
EV009211
-
Version as safety switch
FALSE
-
Suitable for front mounting 4-hole
TRUE
-
Number of switches
1
-
Motor drive integrated
FALSE
-
Suitable for intermediate mounting
FALSE
-
Motor drive optional
FALSE
-
Suitable for front mounting centre
FALSE
-
Version as main switch
TRUE
-
Interlockable
TRUE
-
Version as maintenance-/service switch
TRUE
-
Colour control element
EV000206
-
Suitable for distribution board installation
TRUE
-
Number of poles
4
-
Degree of protection (IP), front side
EV006415
-
Suitable for floor mounting
TRUE
-
Rated permanent current Iu
1000
-
Rated permanent current at AC-23, 400 V
1000
-
Type of control element
EV000421
-
Voltage release optional
TRUE
-
Rated short-time withstand current lcw
25
-
Rated operating voltage
220
-
Number of auxiliary contacts as normally closed contact
-
Number of auxiliary contacts as change-over contact
-
Number of auxiliary contacts as normally open contact

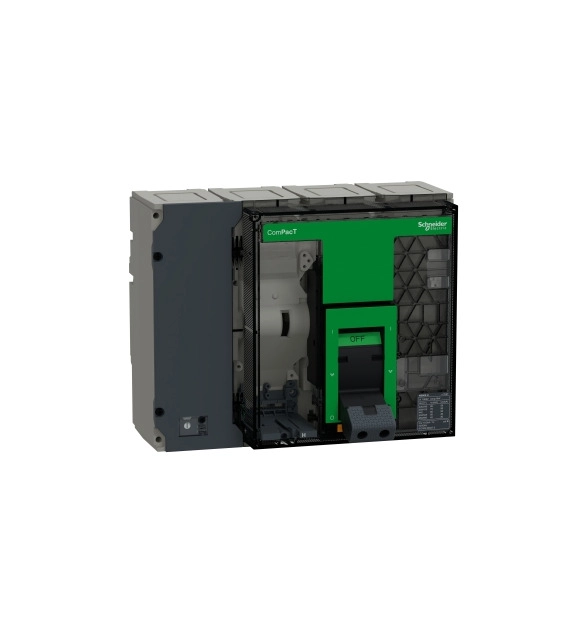

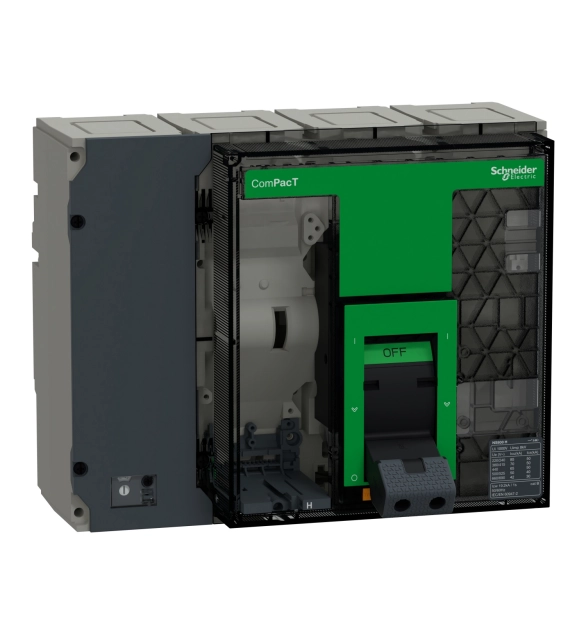

This product is a 4 poles ComPacT NS800L circuit breaker frame. This device is withdrawable and is manually operated. This breaker frame is not equipped with a control unit, which has to be ordered separately through the ComPacT NS product selector. This breaker frame has to be installed inside a chassis, which has to be ordered separately through the ComPacT NS product selector. ComPacT NS is designed to optimize space and breaking capacity, it is an optimal choice for all standard and specific applications. The operational current is 800A. The operational voltage is 690VAC 50/60Hz. The breaking capacity (Icu) is 150kA rms at 415VAC 50/60Hz. The circuit breaker is manually operated with its toggle. The operational current is 800A. This product comes with a variety of optional functions and accessories. This product comes with a variety of optional functions and accessories. The dimensions (without the toggle) are 260mm (Heigh) x 306mm (Width) x 147mm (Depth). It is compliant with IEC 60947-1 and IEC60947-2 international standards. ComPacT NS can be integrated within Schneider Electric EcoStruxure Power architecture. ComPacT NS is part of the global Schneider Electric Environmental Program.
