СКУ: 31341

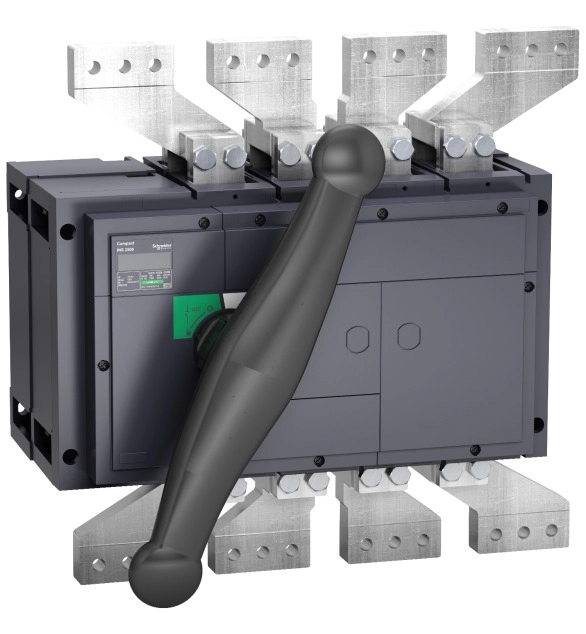

Товаров прекъсвач Compact INS2500 - 2500 A - 4 полюса
-
Brand
Schneider Electric
-
Device construction
EV009211
-
Motor drive optional
FALSE
-
Degree of protection (IP)
EV006415
-
Number of poles
4
-
Rated permanent current Iu
1000
-
Type of electrical connection of main circuit
EV008864
-
Complete device with protection unit
FALSE
-
DIN rail (top hat rail) mounting optional
FALSE
-
Rated voltage
690
-
Position of connection for main current circuit
EV007926
-
Integrated earth fault protection
FALSE
-
Suitable for DIN rail (top hat rail) mounting
FALSE
-
Type of control element
EV000554
-
With switched-off indicator
TRUE
-
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz
70
-
With integrated under voltage release
FALSE
-
Motor drive integrated
TRUE
-
Number of auxiliary contacts as normally closed contact
-
Number of auxiliary contacts as change-over contact
-
Number of auxiliary contacts as normally open contact
This Compact INV1250 is a 4 poles non-automatic switch-disconnector with visible break and black rotary handle. It is suitable for isolation with positive contact indication, as defined by IEC 60947-1 and IEC60947-3 standards. The operational current is 1250A at 415VAC in categories AC21A, AC22A and AC23A. The rated voltage is 690VAC 50/60Hz or 250VDC. Compact INV range allows the visible break of the main contacts through a transparent cover. The black rotary handle is designed to offer easy operation and high performance in interruption of currents. Compact INV1250 is a class II insulation level front-face device as per IEC 60664 standard.
