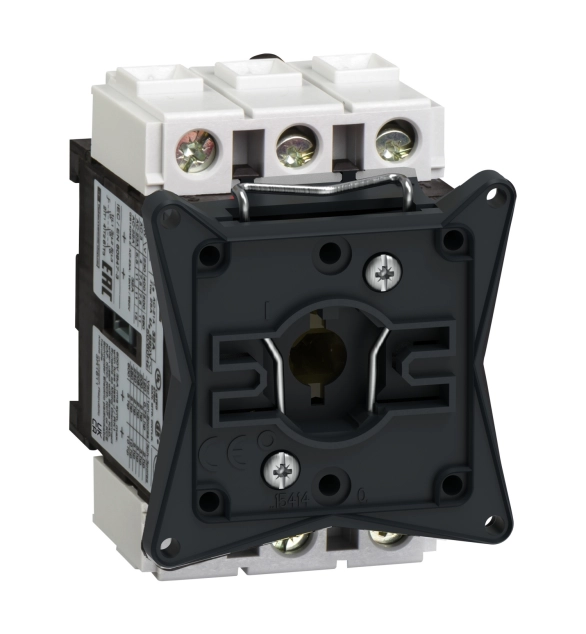

Тяло за пак. прекъсвач BODY 3P DISC SWITCH 20A

• Brand
  Schneider Electric
• Type of electrical connection of main circuit
  EV000415
• Version as emergency stop installation
  FALSE
• Version as reversing switch
  FALSE
• Suitable for front mounting centre
  TRUE
• Conditioned rated short-circuit current Iq
  10
• Max. rated operation voltage Ue AC
  690
• Number of poles
  3
• Version as main switch
  FALSE
• Voltage release optional
  FALSE
• Device construction
  EV009211
• Interlockable
  FALSE
• Version as maintenance-/service switch
  FALSE
• Version as safety switch
  FALSE
• Number of auxiliary contacts as normally closed contact
• Number of auxiliary contacts as change-over contact
• Number of auxiliary contacts as normally open contact
• Degree of protection (IP), front side
  EV006405
• Rated operating voltage
  690
• Suitable for front mounting 4-hole
  TRUE
• Suitable for distribution board installation
  FALSE
• Number of switches
  1
• Motor drive integrated
  FALSE
• Suitable for intermediate mounting
  FALSE
• Suitable for floor mounting
  FALSE
• Motor drive optional
  FALSE
• Rated short-time withstand current lcw
  0.3
• Rated operation power at AC-3, 400 V
  3
• Rated permanent current Iu
  12
• Rated operation power at AC-23, 400 V
  4
• Rated permanent current at AC-21, 400 V
  12
• Rated permanent current at AC-23, 400 V
  8.1
