СКУ: GV4L50N6

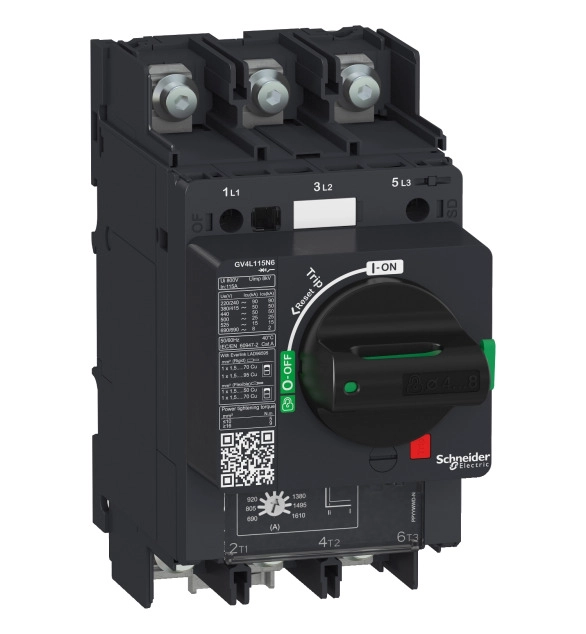

TeSys GV4 - магнитна моторна Защита - 50A 3P - кабелен накрайник
-
Brand
Schneider Electric
-
Type of electrical connection of main circuit
EV000415
-
Number of poles
3
-
Rated operating voltage
690
-
Degree of protection (IP)
EV006415
-
With integrated under voltage release
FALSE
-
Rated operation power at AC-3, 400 V
1.5
-
With integrated auxiliary switch
FALSE
-
Switch off technique
EV006116
-
Rated operation power at AC-3, 230 V
0.75
-
Rated short-circuit breaking capacity lcu at 400 V, AC
100
-
With thermal protection
FALSE
-
Device construction
EV009311
-
Type of control element
EV001252
-
Width
81
-
Phase failure sensitive
FALSE
-
Height
155
-
Rated permanent current Iu
3.5
-
Adjustment range undelayed short-circuit release
21
-
Depth
116
TeSys GV motor circuit breaker, 3 poles (3P), 2A/690V, for protection of 3-phase motors 0.25-0.75kW@400V. It provides magnetic protection, breaking capacity Icu 100kA@400V, start-stop control by toggle, connection by Everlink BTR screw terminals. Magnetic protection adjustable by dial, setting range 6-14 In. It makes internal locations available for additional auxiliary contact blocks (OF, SD), and voltage trip units (MN, MX). To be used in association with a class 10 or 20 thermal overload relay to complete motor protection. Multi standards certified (IEC, CCC, EAC, Marine).
