СКУ: LAD4T3S
TeSys Deca - супресорен модул - двупосочен пиков ограничаващ диод - 25…72 V AC/DC, контактор
-
Brand
Schneider Electric
-
Voltage type for actuating
EV000509
-
With LED indication
FALSE
-
Function
EV000866
-
Rated control supply voltage Us at AC 50HZ
25
-
Rated control supply voltage Us at AC 60HZ
25
-
Rated control supply voltage Us at DC
25

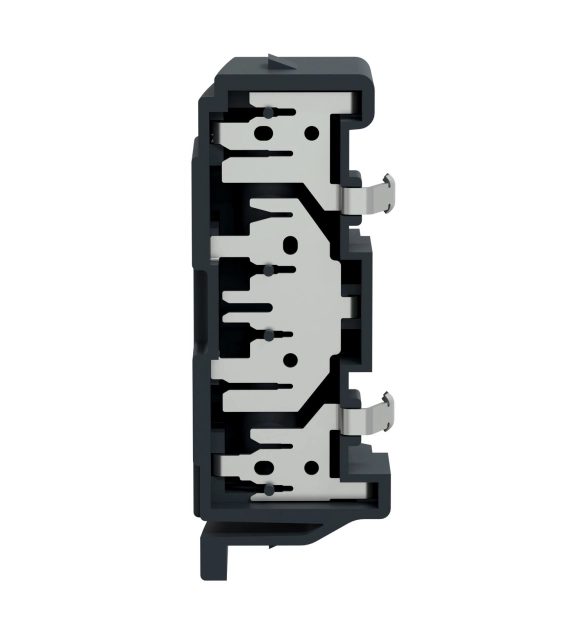

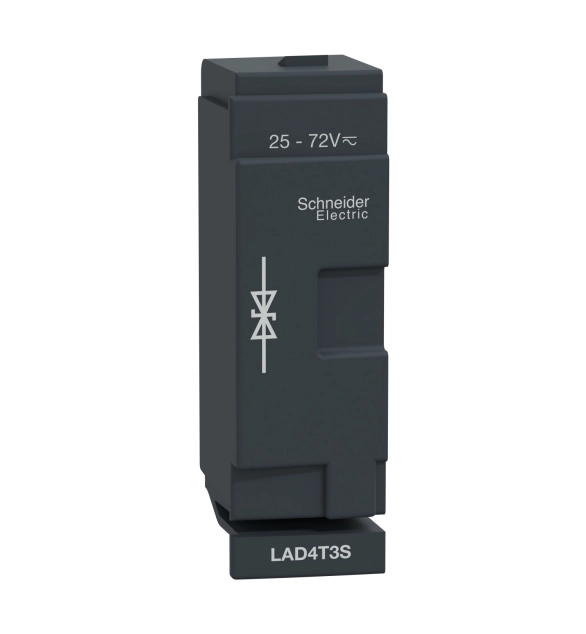

TeSys Deca suppressor module, for LC1D40A-D80A, LC1DT60A-DT80A contactors. To be used with 25-72V AC or DC control circuit voltage, it provides a bidirectional peak limiting diodes protection limiting the transient voltage to 2 Uc max. Clip-on front mounting, overall size of the contactor is unchanged. Sustainability compliant.
