СКУ: LC1D50M7

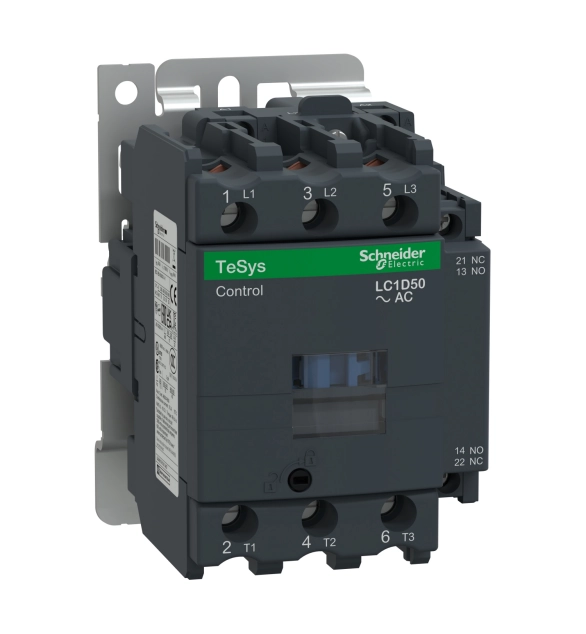

TeSys Deca Контактор,3P(3NO),AC-3/AC-3e/<=440V 50A,220V AC 50/60Hz coil
-
Brand
Schneider Electric
-
Type of electrical connection of main circuit
EV000415
-
Rated operation power at AC-3, 400 V
30
-
Voltage type for actuating
EV000461
-
Rated control supply voltage Us at DC
24
-
Number of auxiliary contacts as normally closed contact
1
-
Number of auxiliary contacts as normally open contact
1
-
Modular version
TRUE
-
Number of normally closed contacts as main contact
-
Number of normally open contacts as main contact
3
-
Rated operation current Ie at AC-1, 400 V
80
-
Rated operation current Ie at AC-3, 400 V
65
-
Rated operation power NEMA
29.8
-
Rated operation current Ie at AC-4, 400 V
65
-
Rated operation power at AC-4, 400 V
30
TeSys Deca contactor, 3 poles (3NO), for motor control applications up to 65A/690V AC-3 (30kW/400V). It provides a 120V 50/60Hz AC coil, 1NO+1NC built-in auxiliary contacts (NC mirror certified), power connection by screw terminals, control connection by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (75mm width), DIN-rail mounting or screw fixing. Multi-standards certified (IEC, UL, CSA, CCC, EAC, Marine), Sustainability compliant. Multi-standards certified (IEC, UL, CSA, CCC, EAC, Marine).
