СКУ: LC2D65AEHE

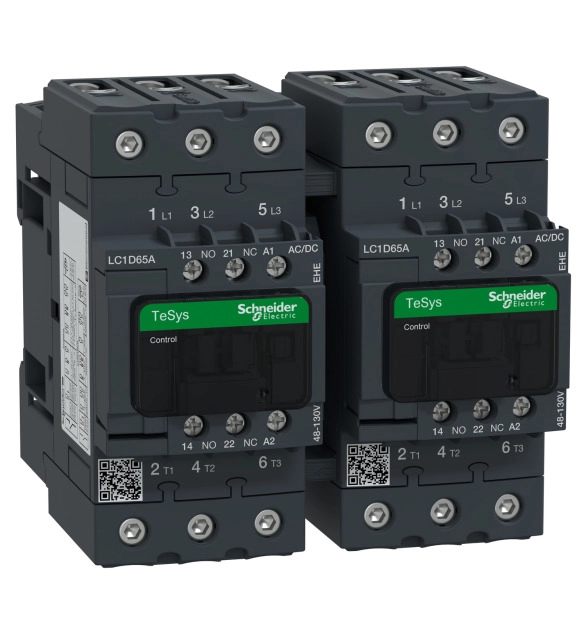

TeSys D реверсивен контактор - 3P - <= 440 V - 65 A AC-3 - 48...130 V AC/DC бобина
-
Brand
Schneider Electric
-
Type of electrical connection of main circuit
EV000415
-
Rated operation power at AC-3, 400 V
30
-
Degree of protection (IP)
EV006405
-
Voltage type for actuating
EV000509
-
Rated control supply voltage Us at DC
100
-
Rated control supply voltage Us at AC 50HZ
100
-
Rated control supply voltage Us at AC 60HZ
100
-
Type of electrical connection for auxiliary- and control current circuit
EV000415
-
Rail mounting possible
TRUE
-
Degree of protection (NEMA)
EV000154
-
Function
EV003958
-
Number of normally closed contacts as main contact
-
Number of normally open contacts as main contact
3
-
Rated operation current Ie at AC-1, 400 V
80
-
Rated operation current Ie at AC-3, 400 V
65
-
Rated operation power NEMA
29.8
TeSys K reversing contactor, 3 poles (3NO), for motor control applications up to 6A/690V AC-3 (2.2kW@400V). It provides 48V 50/60Hz AC coils, 2NC built-in auxiliary contacts, connection by screw clamp terminals. For operating rates until 600 cycles/hour in AC-3 and environments until 50°C, it procures reliability and durability to standard applications. Compact (90mm width), DIN-rail mounting or screw fixing. With pre-wired reversing power connections, mechanical interlock (without electrical interlocking). Multi standards certified (IEC, UL, CSA, CCC, EAC).
