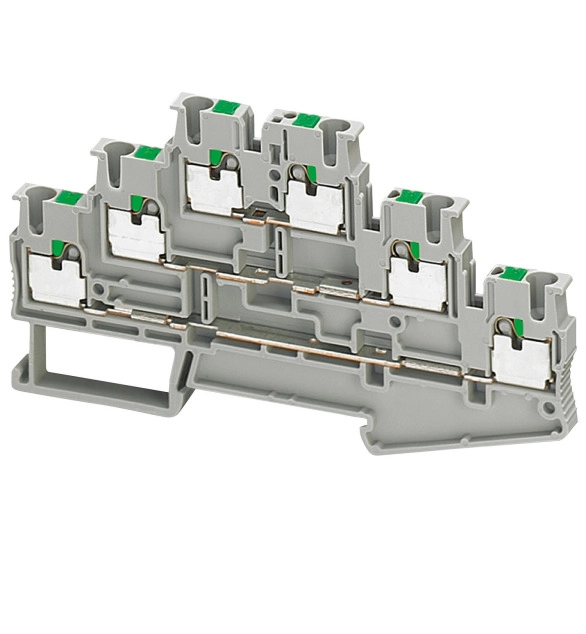

Terminal block, Linergy TR, spring type, feed through, 3 levels Connections, 6 points, 2.5mm?, grey, push-in type, set of 50 | Spark & Co
  • 3D
|

СКУ: NSYTRP26T

Terminal block, Linergy TR, spring type, feed through, 3 levels Connections, 6 points, 2.5mm?, grey, push-in type, set of 50

  • Brand
    Schneider Electric
  • Colour
    EV000270
  • Mounting method
    EV005503
  • Rated voltage
    500
  • Inflammability class of insulation material according to with UL94
    EV004429
  • Material insulation body
    EV000403
  • Explosion-tested version 'Ex e'
    FALSE
  • Height
    58
  • Closing plate required
    TRUE
  • Operating temperature
    -40
  • Number of levels
    3
  • Width
    5.2
  • Connectable conductor cross section solid-core
    0.14
  • Connectable conductor cross section fine-strand without cable end sleeve
    0.14
  • Rated current In
    20
  • Type of electrical connection 2
    EV000414
  • Type of electrical connection 1
    EV000414
  • Depth
    99.5
  • Number of clamp positions per level
    6

Linergy TR is terminal block for Linergy. It belongs to linergy passthrough terminal block with 2.5 mm² nominal cross section. The rated operational voltage is 300V conforming to CSA/UL and 500V conforming to EN/IEC 60947-7-1. The rated current is 20A conforming to EN/IEC 60947-7-1 and 20A conforming to CSA and UL. It has grey surface treatment. Mounting by clip-on and top connection by three-level 1x1 screw terminals. It could be connection and disconnection by screwdriver. It is compatible with spacial enclosures for PrismaSeT G, PrismaSeT P, PrismaSeT HD, PrismaSeT Pack 250, PanelSeT, Mureva Enclosure, PrismaSeT XS, Tesys. Sold in lots of 50 units. Ambient air temperature for operation is from -40 to 130 °C conforming to IEC 60216-1 and VDE 0304-T21. Multi standards certified (UL, CSA).
