Термично реле TVS 80...104A, клас 10A | Spark & Co
  • 3D
|

СКУ: LRE365

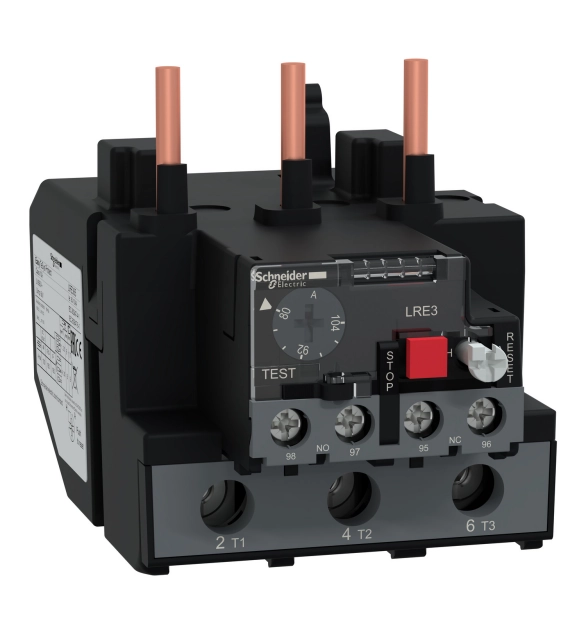

Термично реле TVS 80...104A, клас 10A

  • Brand
    Schneider Electric
  • Type of electrical connection of main circuit
    EV000415
  • Mounting method
    EV003970
  • Reset function input
    FALSE
  • Max. rated operation voltage Ue
    690
  • Release class
    EV011240
  • Number of auxiliary contacts as normally closed contact
    1
  • Number of auxiliary contacts as normally open contact
    1
  • Reset function push-button
    TRUE
  • Reset function automatic
    FALSE
  • Adjustable current range
    80
  • Number of auxiliary contacts as change-over contact

The LRE relay is a differential thermal overload relays for use with fuses or magnetic circuit-breakers. Its thermal setting range is 80-104A 50/60Hz and the tripping class is 10A conforming to IEC 60947-4-1. It can be direct mounted on Easy TeSys Control contactors with screw clamp terminals connection. It protects unbalanced loads and motors with 45-55kW at 400VAC. It provides manual or automatic reset, trip auxiliary contact and flag indicator. Available worldwide, it is multi-standards certified (CB scheme,CE,CCC,EAC) and Environmental compliant (RoHS/REACH).
