СКУ: LRE361

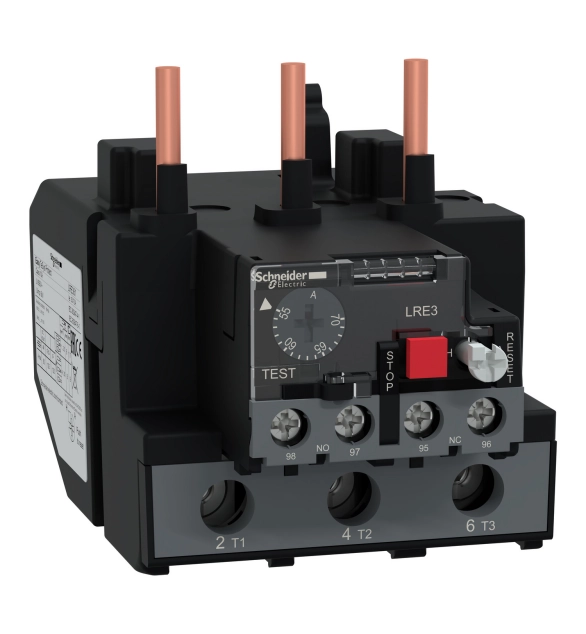

Термична защита THERMAL OVERLOAD RELAY EasyPact TVS 55-70A
-
Brand
Schneider Electric
-
Type of electrical connection of main circuit
EV000415
-
Mounting method
EV003970
-
Max. rated operation voltage Ue
690
-
Release class
EV011240
-
Number of auxiliary contacts as normally closed contact
1
-
Number of auxiliary contacts as normally open contact
1
-
Reset function push-button
TRUE
-
Reset function automatic
FALSE
-
Reset function input
TRUE
-
Adjustable current range
55
-
Number of auxiliary contacts as change-over contact
The LRE relay is a differential thermal overload relays for use with fuses or magnetic circuit-breakers. Its thermal setting range is 55-70A 50/60Hz and the tripping class is 10A conforming to IEC 60947-4-1. It can be direct mounted on Easy TeSys Control contactors with screw clamp terminals connection. It protects unbalanced loads and motors with 30-37kW at 400VAC. It provides manual or automatic reset, trip auxiliary contact and flag indicator. Available worldwide, it is multi-standards certified (CB scheme,CE,CCC,EAC) and Environmental compliant (RoHS/REACH).
