Таванен вентилатор 575 м3/н 230V | Spark & Co
  • 3D
|

СКУ: NSYCVF575M230MF

Таванен вентилатор 575 м3/н 230V

  • Brand
    Schneider Electric
  • EMC-version
    FALSE
  • RAL-number
    7035
  • Colour
    EV000270
  • Width
    340
  • Voltage type
    EV000460
  • Degree of protection (IP)
    EV006419
  • With protective cover
    FALSE
  • Degree of protection (NEMA)
    EV022254
  • Height
    96
  • Suitable for wall built-in
    FALSE
  • Mounting method
    EV000717
  • Suitable for 19 inch rack mounting
    FALSE
  • Air circulator
    TRUE
  • Operating voltage at AC 50 Hz
    230
  • Operating voltage at AC 60 Hz
    230
  • Built as slide-in ventilator
    TRUE
  • Number of fans
    1
  • Depth
    340
  • With filter
    FALSE
  • Roof ventilator
    TRUE
  • Noise emission
    64
  • Rated power
    85
  • Volume flow, freeblowing
    575

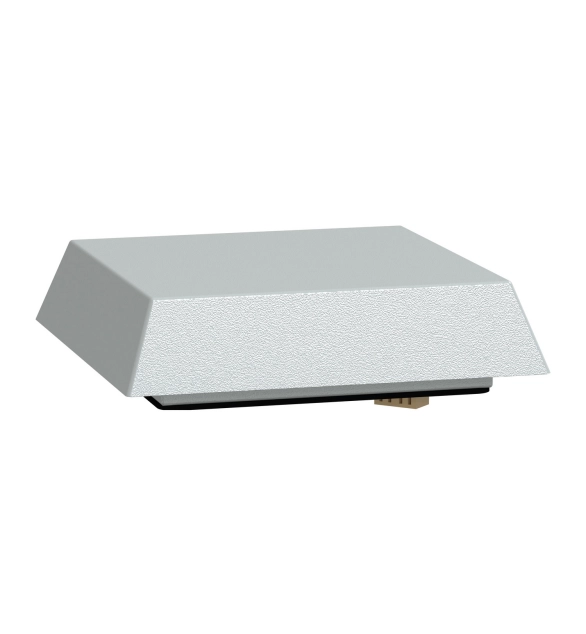

ClimaSys 85W top hood with fan 228 x 228mm with G2 filter ensures effective temperature control inside Prisma P, Prisma PH, Prisma iPM M and enclosure enclosures The fan performs free flow rate of 575 m3/h at 50 Hz and 350 m3/h with outlet grille cut-out 291 x 291mm The external width is 340mm, height is 96mm and depth is 340mm The accessory is made up of 1 hood for top of enclosure, 1 fan and 1 fixing elements The hood color is grey (RAL 7035) Ingress protection rating is IP54 Input voltage is 230 V 50/60 Hz Noise level is 64-64 dB Protection IP54.
