СКУ: NSYPLA15103TG

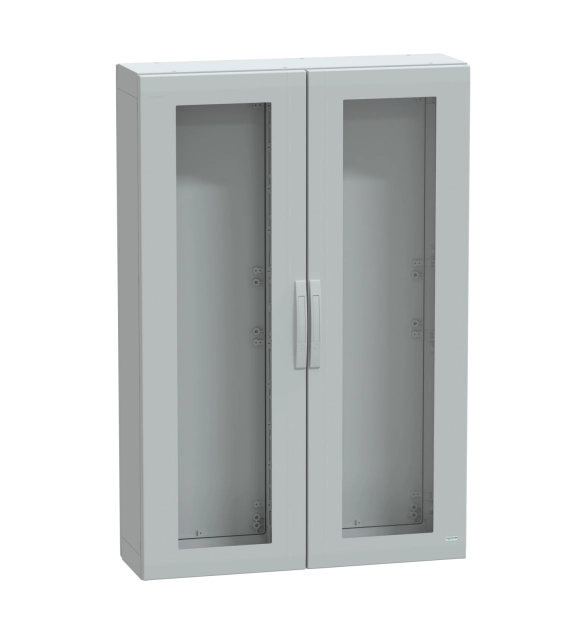

Табло за стоящ монтаж, полиестер vers.PLA изцяло запечатан 1500x1000x320 IP65
-
Brand
Schneider Electric
-
Material
EV000139
-
With mounting plate
FALSE
-
EMC-version
FALSE
-
RAL-number
7035
-
Degree of protection (IP)
EV006421
-
Colour
EV000270
-
Degree of protection (NEMA)
EV000154
-
With backside door
FALSE
-
Number of doors
2
-
With glazed door
TRUE
-
Height
1000
-
Connectable
FALSE
-
Detached
FALSE
-
Pitched roof
FALSE
-
Floor standing wall model
TRUE
-
Intermediate mounting
FALSE
-
Corner model
FALSE
-
Suitable for wall mounting
FALSE
-
Suitable for wall built-in
FALSE
-
Mounting plate depth-adjustable
FALSE
-
With ventilation door
FALSE
-
Pole fastening
FALSE
-
Suitable for outdoor set-up
TRUE
-
Impact strength
EV006814
-
Surface finishing
EV006034
-
Width
1250
-
Suitable for metrical mounting
FALSE
-
Number of locks
1
-
Material quality
EV000819
-
Depth
320
-
Max. permissible load of the door(s) according to IEC 62208
147
-
Max. permissible load of the mounting plate according to IEC 62208
1304
-
Max. permissible load of the enclosure according to IEC 62208
2059
PanelSeT SM is a multi-purpose steel compact monobloc floor-standing enclosure designed for use in harsh environments. It has a nominal height, width and depth of 2000mm, 1200mm and 500mm respectively. The enclosure is made in grey color (RAL7035) with an epoxy-polyester powder surface finish and the handle is made in black color (RAL9005) It consists of one body, two plain doors, one cable gland plate with one entry and four mounting plate brackets. The doors can be opened up to 120°, allowing easy access to the equipment inside. The enclosure has a four-point lock with a handle with 5mm double-bar insert. The doors and the mounting plate brackets can be removed for maintenance purposes. It is certified by BV and UL and marine certified by DNV. This enclosure has IP55 ingress protection rating against dust and water and IK10 impact protectoin rating.
