СКУ: NSYPLA10104TG

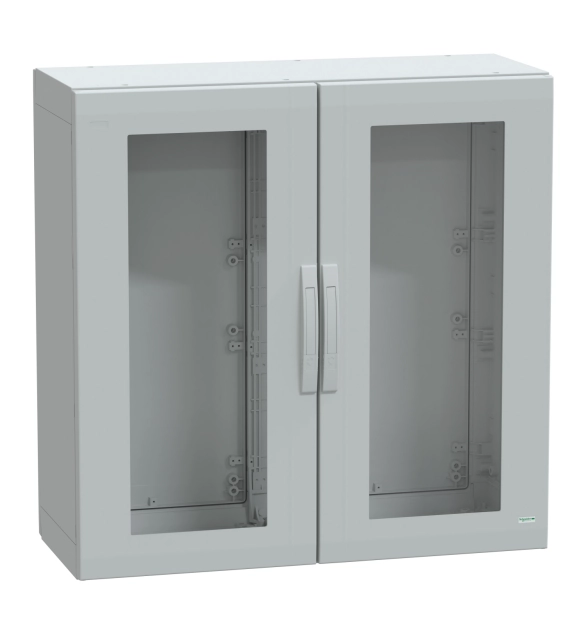

Табло за стоящ монтаж, полиестер vers.PLA изцяло запечатан 1000x1000x420 IP65
-
Brand
Schneider Electric
-
Material
EV000139
-
With mounting plate
FALSE
-
EMC-version
FALSE
-
RAL-number
7035
-
Degree of protection (IP)
EV006421
-
Colour
EV000270
-
With backside door
FALSE
-
Number of doors
2
-
With glazed door
TRUE
-
Width
1000
-
Degree of protection (NEMA)
EV000070
-
Connectable
FALSE
-
Detached
FALSE
-
Pitched roof
FALSE
-
Intermediate mounting
FALSE
-
Corner model
FALSE
-
Suitable for wall built-in
FALSE
-
Mounting plate depth-adjustable
FALSE
-
With ventilation door
FALSE
-
Pole fastening
FALSE
-
Floor standing wall model
FALSE
-
Suitable for wall mounting
TRUE
-
Suitable for outdoor set-up
TRUE
-
Impact strength
EV006814
-
Surface finishing
EV006034
-
Height
1500
-
Suitable for metrical mounting
FALSE
-
Number of locks
1
-
Material quality
EV000819
-
Depth
320
-
Max. permissible load of the enclosure according to IEC 62208
1638
-
Max. permissible load of the mounting plate according to IEC 62208
1324
This PLA is a multi-purpose, floor-standing unit that is suitable for various applications It has a nominal height of 1000mm, a width of 1250mm, and a depth of 420mm The enclosure is made of polyester reinforced with fiberglass, providing durability and resistance to harsh environments It is available in grey (RAL 7035) color and consists of two side parts, two transparent front doors, and two rear panels The doors can open up to 120° from either the right or left side, and feature a four-point lock with a 5mm double-bar insert The doors and rear panels are removable for easy maintenance The enclosure offers robust protection against various hazards, including fire, impacts, dust, and water It can withstand fire up to 960°C in accordance with the IEC 62208 standard, and has an IK08 rating (IEC 62262) for resistance to impacts It is rated IP65 (IEC 60529), offering complete protection against dust and water Additionally, the enclosure has Class II electrical insulation to prevent electric shocks and allow for the building of totally insulated solutions It is DNV Marine, UL/cUL listed, and Veritas certified, and can be stored in ambient air temperatures ranging from -35°C to 90°C without affecting its performance
