Табло за стенен монтаж, полиестър, моноблок IP66 530x430x200mm | Spark & Co
  • 3D
|

СКУ: NSYPLM54TVG

Табло за стенен монтаж, полиестър, моноблок IP66 530x430x200mm

  • Brand
    Schneider Electric
  • Material
    EV000139
  • With mounting plate
    FALSE
  • EMC-version
    FALSE
  • RAL-number
    7035
  • Colour
    EV000270
  • Depth
    200
  • Number of doors
    1
  • With backside door
    FALSE
  • With glazed door
    TRUE
  • Degree of protection (NEMA)
    EV014040
  • Degree of protection (IP)
    EV006422
  • Connectable
    FALSE
  • Detached
    FALSE
  • Pitched roof
    FALSE
  • Intermediate mounting
    FALSE
  • Corner model
    FALSE
  • With ventilation door
    FALSE
  • Suitable for wall mounting
    TRUE
  • Suitable for outdoor set-up
    TRUE
  • Impact strength
    EV006814
  • Surface finishing
    EV006034
  • Height
    530
  • Material quality
    EV000819
  • Suitable for wall built-in
    TRUE
  • Mounting plate depth-adjustable
    TRUE
  • Pole fastening
    TRUE
  • Number of locks
    2
  • Width
    430
  • Max. permissible load of the mounting plate according to IEC 62208
    232
  • Max. permissible load of the enclosure according to IEC 62208
    300

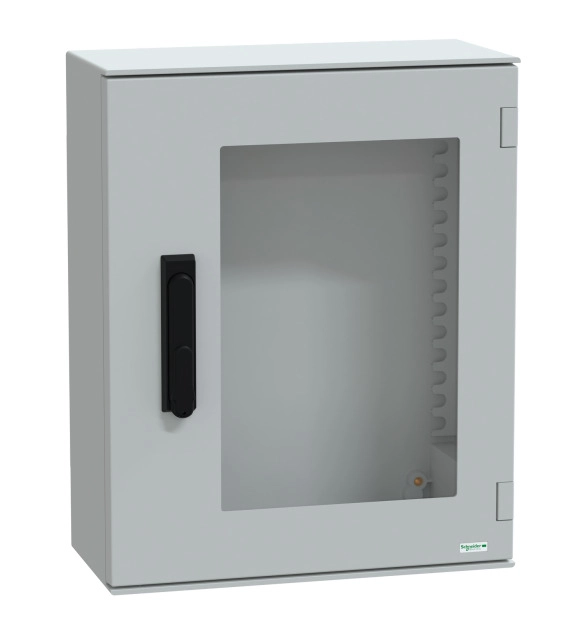

This PanelSeT PLM (formerly PanelSeT PLM) is a wall-mounted enclosure that is suitable for multi-purpose applications. The enclosure has a nominal height, width, and depth of 530 mm, 430 mm, and 200 mm, respectively. It is made of polyester reinforced with fiberglass, which offers durability and resistance to industrial, harsh and outdoor environments. The polyester material is made with 37% of recycled material content. Its packaging is made of 75% recycled carboard and without single-use plastic. The enclosure comes in a grey (RAL 7035) color. The enclosure consists of one body, one door, and one handle lock. The door is transparent and can be opened from the front with a 3 points handle. The enclosure offers high protection against dust and water with an IP66 rating (IEC 60529). It is also highly resistant to impacts, with an IK08 rating (IEC 62262), and offers protection against electric shocks with a class II electrical insulation rating. The enclosure can be used in ambient air temperatures ranging from -40 to 80°C without affecting its performance. The enclosure is also fire resistant up to 960 °C.
