Табло Spacial CRN с плътна врата с монтажна плоча, H300xW250xD200 IP66 IK10 RAL7035.. | Spark & Co
  • 3D
|

СКУ: NSYCRN325200P

Табло Spacial CRN с плътна врата с монтажна плоча, H300xW250xD200 IP66 IK10 RAL7035..

  • Brand
    Schneider Electric
  • EMC-version
    FALSE
  • RAL-number
    7035
  • Colour
    EV000270
  • With mounting plate
    TRUE
  • Surface finishing
    EV008895
  • Material
    EV000179
  • Depth
    200
  • Degree of protection (NEMA)
    EV000154
  • With glazed door
    FALSE
  • Number of doors
    1
  • With backside door
    FALSE
  • Material quality
    EV000154
  • Degree of protection (IP)
    EV006422
  • Height
    300
  • Width
    250
  • Connectable
    FALSE
  • Suitable for outdoor set-up
    FALSE
  • Detached
    FALSE
  • Pitched roof
    FALSE
  • Intermediate mounting
    FALSE
  • Corner model
    FALSE
  • Suitable for wall built-in
    FALSE
  • Mounting plate depth-adjustable
    FALSE
  • With ventilation door
    FALSE
  • Floor standing wall model
    FALSE
  • Suitable for wall mounting
    TRUE
  • Impact strength
    EV008784
  • Suitable for metrical mounting
    FALSE
  • Number of locks
    1
  • Pole fastening
    TRUE
  • Max. permissible load of the mounting plate according to IEC 62208
    187.5
  • Max. permissible load of the enclosure according to IEC 62208
    725
  • Max. permissible load of the door(s) according to IEC 62208
    37.5

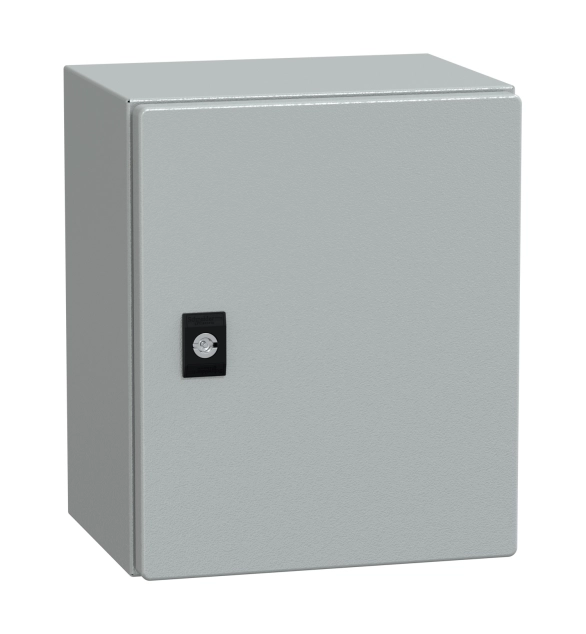

PanelSeT CRN steel wall-mounting enclosure is designed for multi-purpose applications and is suitable for use in harsh environments It has an IK10 (IEC 62262) rating and an IP66 rating (IEC 60529) for high impact resistance and protection against dust and water The enclosure has a nominal height, width, and depth of 300mm, 250mm, and 200mm, respectively The enclosure is grey-coloured (RAL 7035) with an epoxy-polyester powder surface finish It consists of a body, a cable gland plate, a plain door with a 3mm double-bar lock, and a mounting plate The door can be opened up to 120°, allowing easy access to the equipment inside It is possible to change the opening side of the door (reversible) The door, cable gland plate, and mounting plate can be removed for maintenance purposes The mounting plate is made of galvanised steel The net weight of the enclosure is 5,13kg This compact enclosure is c.UL certified.
