СКУ: NSYS3HF10830P

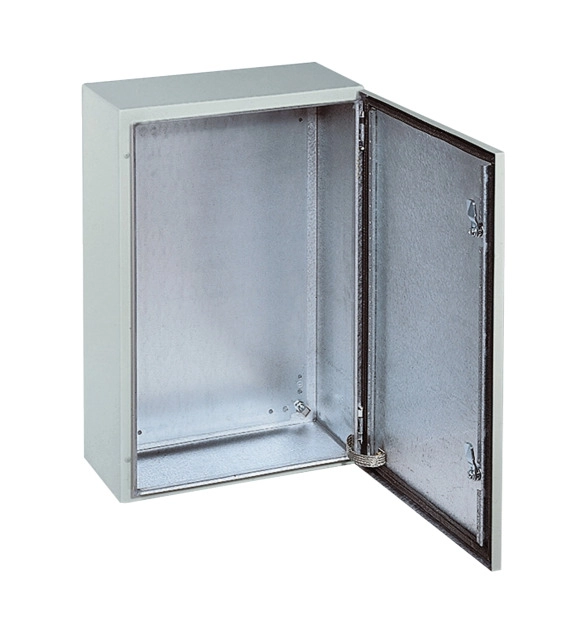

Табло S3HF с емз с мп 1000х800х300
-
Brand
Schneider Electric
-
EMC-version
FALSE
-
RAL-number
7035
-
Colour
EV000270
-
With mounting plate
TRUE
-
Degree of protection (IP)
EV006420
-
Surface finishing
EV008895
-
Material
EV000179
-
Degree of protection (NEMA)
EV000154
-
With glazed door
FALSE
-
Number of doors
1
-
Depth
600
-
With backside door
FALSE
-
Material quality
EV000154
-
Width
1000
-
Height
2000
-
Suitable for outdoor set-up
FALSE
-
Detached
FALSE
-
Suitable for metrical mounting
TRUE
-
Pitched roof
FALSE
-
Floor standing wall model
TRUE
-
Corner model
FALSE
-
Suitable for wall mounting
FALSE
-
Suitable for wall built-in
FALSE
-
With ventilation door
FALSE
-
Pole fastening
FALSE
-
Impact strength
EV008784
-
Connectable
TRUE
-
Number of locks
1
-
Mounting plate depth-adjustable
TRUE
-
Intermediate mounting
TRUE
-
Max. permissible load of the mounting plate according to IEC 62208
-
Max. permissible load of the enclosure according to IEC 62208
-
Max. permissible load of the door(s) according to IEC 62208
-
Thermal dissipation (Delta T = 20 K) according to IEC/TR 60890
898
This PLAT version of the PLA is a versatile, floor-standing enclosure, suitable for various applications The enclosure has nominal dimensions of 1000mm in height, 1250mm in width, and 320mm in depth It is made of polyester reinforced with fiberglass, offering durability and resistance to harsh environments, including outdoor and industrial settings The enclosure is available in grey (RAL 7035) It consists of two side parts, two plain front doors, two rear panels, one canopy, and one plinth The doors can be opened from both the right and left sides, up to 120°, and feature a four-point lock with a handle that has a 5mm double-bar insert The doors, rear panels, and canopy are also removable for maintenance purposes The enclosure offers robust protection against various hazards, including fire, impact, dust, and water It can withstand fire up to 960°C in accordance with the IEC 62208 standard The enclosure also has an IK10 rating (IEC 62262), indicating high resistance to impacts It is rated IP44 (IEC 60529), offering high protection against dust and water Additionally, the enclosure has class II electrical insulation to prevent electric shocks and allow for the building of totally insulated solutions It is UL certified and can be stored in ambient air temperatures ranging from -35°C to 90°C without affecting its performance
