СКУ: NSYS3D101230DP
Табло S3D с 2врати H1000XW1200XD300 с МП
-
Brand
Schneider Electric
-
EMC-version
FALSE
-
RAL-number
7035
-
Colour
EV000270
-
With mounting plate
TRUE
-
Degree of protection (IP)
EV006420
-
Surface finishing
EV008895
-
Material
EV000179
-
With glazed door
FALSE
-
With backside door
FALSE
-
Material quality
EV000154
-
Number of doors
2
-
Degree of protection (NEMA)
EV007990
-
Width
1200
-
Height
1000
-
Connectable
FALSE
-
Suitable for outdoor set-up
FALSE
-
Depth
300
-
Detached
FALSE
-
Suitable for metrical mounting
TRUE
-
Pitched roof
FALSE
-
Floor standing wall model
TRUE
-
Intermediate mounting
FALSE
-
Corner model
FALSE
-
Suitable for wall built-in
FALSE
-
Mounting plate depth-adjustable
FALSE
-
With ventilation door
FALSE
-
Suitable for wall mounting
TRUE
-
Impact strength
EV008784
-
Number of locks
1
-
Pole fastening
TRUE
-
Max. permissible load of the mounting plate according to IEC 62208
250
-
Max. permissible load of the enclosure according to IEC 62208
250
-
Max. permissible load of the door(s) according to IEC 62208
50

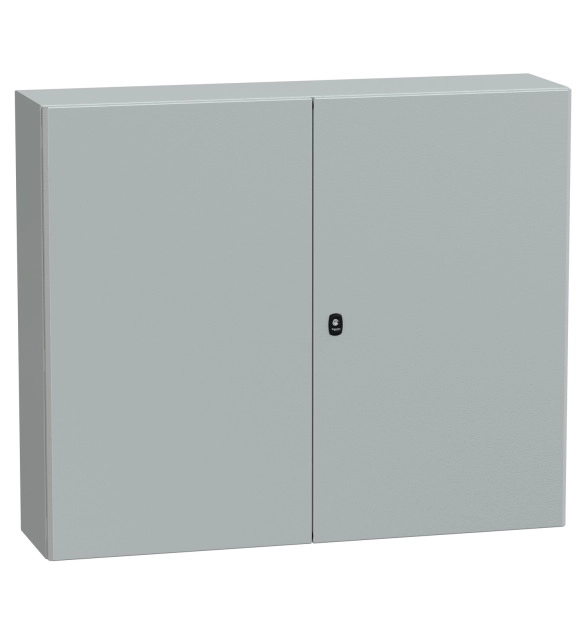

PanelSeT S3D steel wall-mounting enclosure for multi-purpose applications is designed for use in harsh environments It has a nominal height, width and depth of 1000mm, 1200mm and 300mm, respectively The enclosure is grey-coloured (RAL 7035) with an epoxy-polyester powder surface finish It consists of a body, two cable gland plates, two plain doors with a three-point lock and a 3mm double-bar insert, and a galvanised steel mounting plate The doors can be opened up to 120°, allowing easy access to the equipment inside Furthermore, it is possible to change the opening side of the doors (reversible) The doors, cable gland plates and mounting plate can be removed for maintenance purposes The net weight of the enclosure is 75kg It has a IK10 rating (IEC62262) and an IP55 rating (IEC60529) It has a gutter-shaped front rail with double sheet thickness and a single piece body The enclosure is certified by DNV, LR, cUL, GL, BV and UL standards
