Табло S3D 800х600х200 с мп | Spark & Co
  • 3D
|

СКУ: NSYS3D8620P

Табло S3D 800х600х200 с мп

  • Brand
    Schneider Electric
  • EMC-version
    FALSE
  • RAL-number
    7035
  • Colour
    EV000270
  • With mounting plate
    TRUE
  • Surface finishing
    EV008895
  • Material
    EV000179
  • Width
    600
  • Depth
    200
  • With glazed door
    FALSE
  • Number of doors
    1
  • With backside door
    FALSE
  • Material quality
    EV000154
  • Degree of protection (NEMA)
    EV014040
  • Degree of protection (IP)
    EV006422
  • Height
    600
  • Connectable
    FALSE
  • Suitable for outdoor set-up
    FALSE
  • Detached
    FALSE
  • Suitable for metrical mounting
    TRUE
  • Pitched roof
    FALSE
  • Intermediate mounting
    FALSE
  • Corner model
    FALSE
  • Suitable for wall built-in
    FALSE
  • Mounting plate depth-adjustable
    FALSE
  • With ventilation door
    FALSE
  • Floor standing wall model
    FALSE
  • Suitable for wall mounting
    TRUE
  • Impact strength
    EV008784
  • Number of locks
    1
  • Pole fastening
    TRUE
  • Max. permissible load of the mounting plate according to IEC 62208
    250
  • Max. permissible load of the enclosure according to IEC 62208
    250
  • Max. permissible load of the door(s) according to IEC 62208
    50

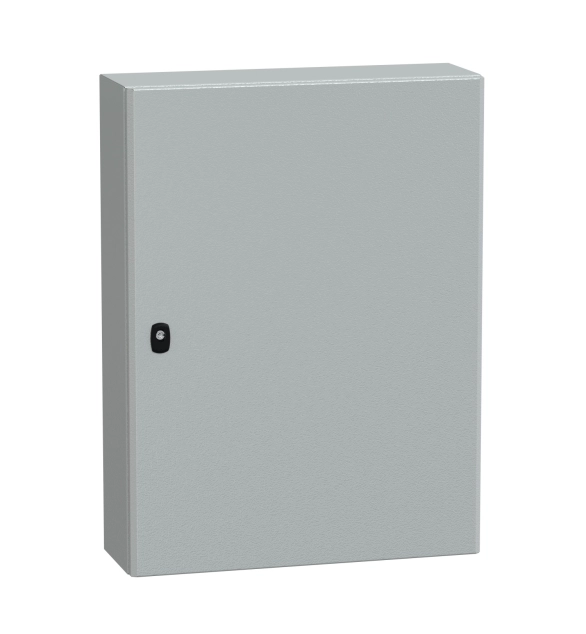

PanelSeT S3D steel wall-mounting enclosure for multi-purpose applications is designed for use in harsh environments It is certified by UL, BV, DNV, GL, cUL, and LR and is rated NEMA 4X/13 The enclosure is grey-coloured (RAL7035) with an epoxy-polyester powder surface finish The enclosure has a nominal height, width and depth of 600mm, 600mm and 200mm, respectively The enclosure consists of a body, one mounting plate, one plain door with a three-point lock and a 3mm double-bar insert, and one cable gland plate The door can be opened up to 120°, allowing easy access to the equipment inside Furthermore, it is possible to change the opening side of the door (reversible) The door, cable gland plate and mounting plate can be removed for maintenance purposes The net weight of the enclosure is 18kg Additionally, the enclosure is IK10 (IEC62262) rated and has a high resistance to dust and water with an IP66 rating (IEC60529) It also features a gutter-shaped front rail double sheet thickness and a single piece body for added strength
