Табло S3D 500х500х250 с мп | Spark & Co
  • 3D
|

СКУ: NSYS3D5525P

Табло S3D 500х500х250 с мп

  • Brand
    Schneider Electric
  • EMC-version
    FALSE
  • RAL-number
    7035
  • Colour
    EV000270
  • With mounting plate
    TRUE
  • Surface finishing
    EV008895
  • Material
    EV000179
  • With glazed door
    FALSE
  • Number of doors
    1
  • With backside door
    FALSE
  • Material quality
    EV000154
  • Width
    500
  • Degree of protection (NEMA)
    EV014040
  • Degree of protection (IP)
    EV006422
  • Height
    500
  • Connectable
    FALSE
  • Suitable for outdoor set-up
    FALSE
  • Detached
    FALSE
  • Suitable for metrical mounting
    TRUE
  • Pitched roof
    FALSE
  • Intermediate mounting
    FALSE
  • Corner model
    FALSE
  • Suitable for wall built-in
    FALSE
  • Mounting plate depth-adjustable
    FALSE
  • With ventilation door
    FALSE
  • Floor standing wall model
    FALSE
  • Suitable for wall mounting
    TRUE
  • Impact strength
    EV008784
  • Depth
    250
  • Number of locks
    1
  • Pole fastening
    TRUE
  • Max. permissible load of the mounting plate according to IEC 62208
    250
  • Max. permissible load of the enclosure according to IEC 62208
    250
  • Max. permissible load of the door(s) according to IEC 62208
    50

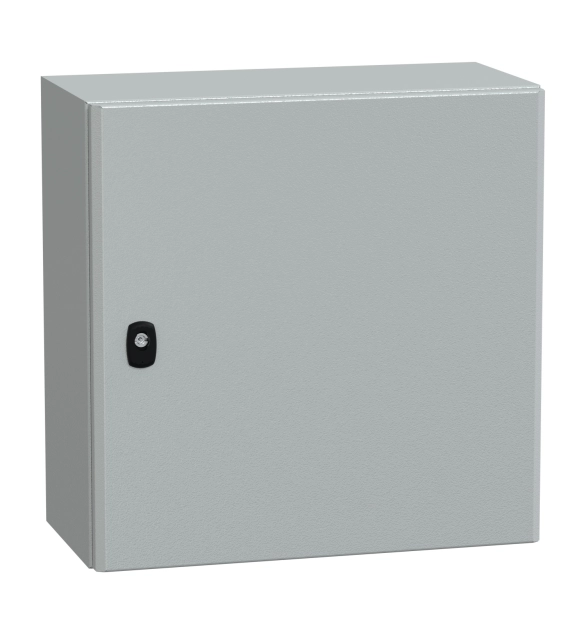

PanelSeT S3D is a multi-purpose wall-mounting enclosure made from steel and galvanised steel It is designed for use in harsh environments and is certified by UL, cUL, LR, BV, GL, and DNV The enclosure has a nominal height, width and depth of 500mm, 500mm and 250mm, respectively The enclosure is grey-coloured (RAL7035) with an epoxy-polyester powder surface finish The enclosure consists of a body, a mounting plate, a plain door with a lock and a cable gland plate The door can be opened up to 120°, allowing easy access to the equipment inside Furthermore, it is possible to change the opening side of the door (reversible) The door is secured with a 3mm double-bar lock The door, cable gland plate and mounting plate can be removed for maintenance purposes The net weight of the enclosure is 15kg It is compliant with IEC 62208 standards and has a NEMA 4X/13 rating and IK10 (IEC62262) and IP66 (IEC60529) ratings for protection against dust and water The enclosure features a single-piece body and a gutter-shaped front rail double sheet thickness for extra strength and durability The front face provides easy accessibility for operation
