СКУ: NSYS3D4315
Табло S3D 400х300х150 без мп
-
Brand
Schneider Electric
-
With mounting plate
FALSE
-
EMC-version
FALSE
-
RAL-number
7035
-
Colour
EV000270
-
Surface finishing
EV008895
-
Material
EV000179
-
With glazed door
FALSE
-
Number of doors
1
-
With backside door
FALSE
-
Material quality
EV000154
-
Depth
150
-
Degree of protection (NEMA)
EV014040
-
Degree of protection (IP)
EV006422
-
Height
400
-
Width
300
-
Connectable
FALSE
-
Suitable for outdoor set-up
FALSE
-
Detached
FALSE
-
Suitable for metrical mounting
TRUE
-
Pitched roof
FALSE
-
Intermediate mounting
FALSE
-
Corner model
FALSE
-
Suitable for wall built-in
FALSE
-
Mounting plate depth-adjustable
FALSE
-
With ventilation door
FALSE
-
Floor standing wall model
FALSE
-
Suitable for wall mounting
TRUE
-
Impact strength
EV008784
-
Number of locks
1
-
Pole fastening
TRUE
-
Max. permissible load of the mounting plate according to IEC 62208
250
-
Max. permissible load of the enclosure according to IEC 62208
250
-
Max. permissible load of the door(s) according to IEC 62208
50

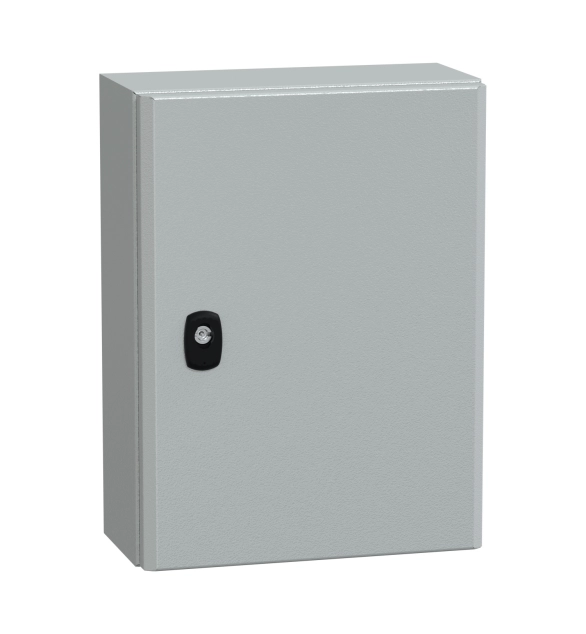

PanelSeT S3D is a monobloc wall-mounting enclosure for multi-purpose applications It is designed to withstand harsh environments, with a NEMA 4X/13 rating and an IK10 rating (IEC62262) for high impact resistance The enclosure is also IP66 rated (IEC60529), making it dust-tight and water-tight This enclosure has a nominal height, width and depth of 400mm, 300mm and 150mm, respectively The enclosure is grey-coloured (RAL7035) with an epoxy-polyester powder surface finish The enclosure consists of a body, a door, a lock and a cable gland plate The door can be opened up to 120°, allowing easy access to the equipment inside Furthermore, it is possible to change the opening side of the door (reversible) The door has a three-point lock with a 3mm double-bar insert The door and the cable gland plate can be removed for maintenance purposes The net weight of the enclosure is 4,9kg It is certified by UL, BV, LR, cUL, GL and DNV standards
