Табло S3D 1000х800х300 без мп | Spark & Co
  • 3D
|

СКУ: NSYS3D10830

Табло S3D 1000х800х300 без мп

  • Brand
    Schneider Electric
  • With mounting plate
    FALSE
  • EMC-version
    FALSE
  • RAL-number
    7035
  • Colour
    EV000270
  • Surface finishing
    EV008895
  • Material
    EV000179
  • With glazed door
    FALSE
  • Number of doors
    1
  • With backside door
    FALSE
  • Material quality
    EV000154
  • Degree of protection (NEMA)
    EV014040
  • Degree of protection (IP)
    EV006422
  • Width
    800
  • Height
    1000
  • Connectable
    FALSE
  • Suitable for outdoor set-up
    FALSE
  • Depth
    300
  • Detached
    FALSE
  • Suitable for metrical mounting
    TRUE
  • Pitched roof
    FALSE
  • Floor standing wall model
    TRUE
  • Intermediate mounting
    FALSE
  • Corner model
    FALSE
  • Suitable for wall built-in
    FALSE
  • Mounting plate depth-adjustable
    FALSE
  • With ventilation door
    FALSE
  • Suitable for wall mounting
    TRUE
  • Impact strength
    EV008784
  • Number of locks
    1
  • Pole fastening
    TRUE
  • Max. permissible load of the mounting plate according to IEC 62208
    250
  • Max. permissible load of the enclosure according to IEC 62208
    250
  • Max. permissible load of the door(s) according to IEC 62208
    50

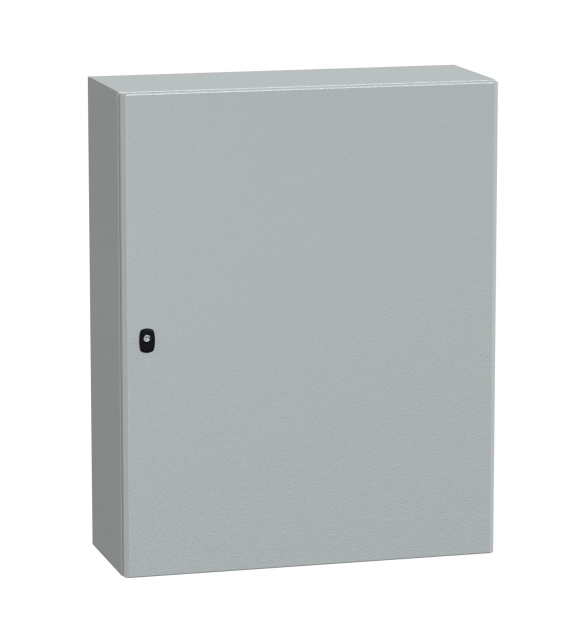

PanelSeT S3D steel wall-mounting enclosure for multi-purpose applications is designed for use in harsh environments It is certified by BV, LR, GL, cUL, DNV and UL and offers a high degree of protection with an IK10 rating (IEC62262) and an IP66 rating (IEC60529) This enclosure has a nominal height, width and depth of 1000mm, 800mm and 300mm, respectively The enclosure is grey-coloured (RAL7035) with an epoxy-polyester powder surface finish The enclosure consists of a body, two cable gland plates, one plain door and a lock The door can be opened up to 120°, allowing easy access to the equipment inside Furthermore, it is possible to change the opening side of the door (reversible) The door has a three-point lock with a 3mm double-bar insert The door and the cable gland plates can be removed for maintenance purposes The net weight of the enclosure is 33kg It also has a NEMA 4X/13 rating Additionally, the gutter-shaped front rail has double sheet thickness and the body is a single piece The enclosure is accessible from the front
