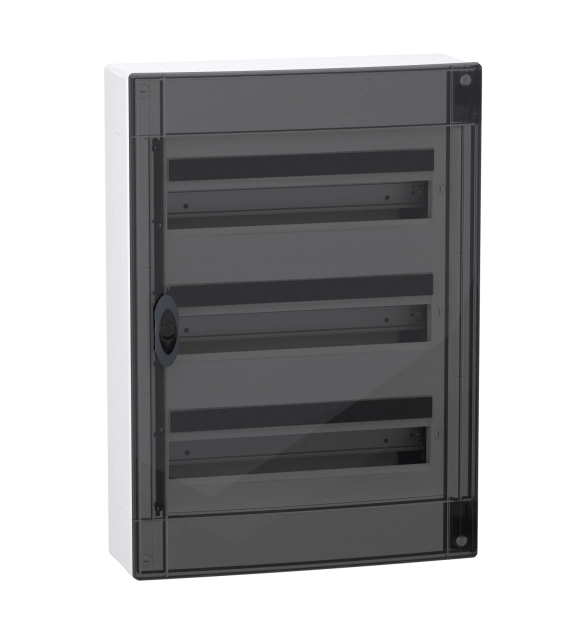

Tабло PrismaSet XS за открит монтаж 3р 18 модула опушена врата 2TB

This PrismaSeT XS enclosure is a surface mounted distribution enclosure. This plastic enclosure is composed of 3 rows of 18 modules of 18mm. It can accomodate all types of modular switchgear. This enclosure is dedicated to indoor installation. The IP degree of protection is IP40 closed door. It is provided with a transparent smoked door. The colour of the enclosure and the front plate is white (RAL 9003). This ready-to-use enclosure is intended in residental and tertiary sectors. It is devised for electricians, providing ergonomics and flexibility of installation. The cables can enter via the top or bottom of the enclosure by removable cable entry plates. It enables entry by cable, tube or trunking. It is equipped with 1 back plate and 3 DIN rails. The rails are removable and facilitate wiring and maintenance operations. It comes with 1 earth and 1 neutral terminal block. The earth terminal block provides 32 outgoers (4x (4x16mm² + 4x10mm²)). The neutral terminal block provides 24 outgoers (3x (4x16mm² + 4x10mm²)). It is provided with 3 identification labels, 3 label protectors, 1 blanking plate strip and some cable fixing hardware. The electrical insulation class is class II. The Ui rated insulation voltage is 400V. The overvoltage category is II. The In rated current is up to 125A. The dissipated power is 56W. It complies with the IEC 60670-1 and -24 standards. The total dimensions are (W) 426mm x (H) 600mm x (D) 151mm. The product weight is 4.700kg. The enclosure and the front plate are made of technoplastic. The back part and the door are made of technoplastic. The resistance of the plastic to flames and to abnormal heat is 650°C for the enclosure, the front plate and the back plate, and 750°C for the door. The IK degree of protection is IK09 with closed door. The operating temperature are -25°C to 60°C.
