СКУ: 13985
Табло KAEDRA 3*12 MOD (A)
-
Brand
Schneider Electric
-
With mounting plate
FALSE
-
Transparent cover/door
FALSE
-
Signal passing door
FALSE
-
Material housing
EV000139
-
Mounting method
EV000384
-
With lock
FALSE
-
EMC-version
FALSE
-
Earthing terminal block
FALSE
-
Neutral terminal block
FALSE
-
Type of cover
EV004216
-
Extension possible
TRUE
-
RAL-number
7035
-
Height
460
-
Degree of protection (IP)
EV006421
-
Type of closure
EV000154
-
Cover model
EV000116
-
Colour
EV000270
-
Depth
160
-
Internal depth
88
-
DIN-rail
FALSE
-
Width
138

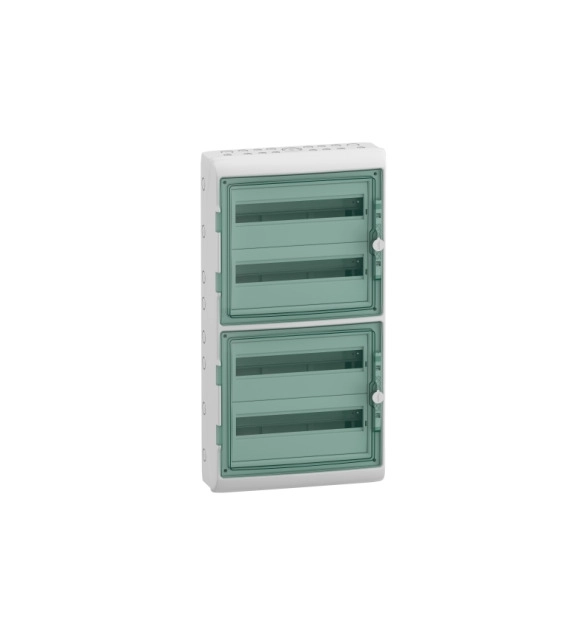

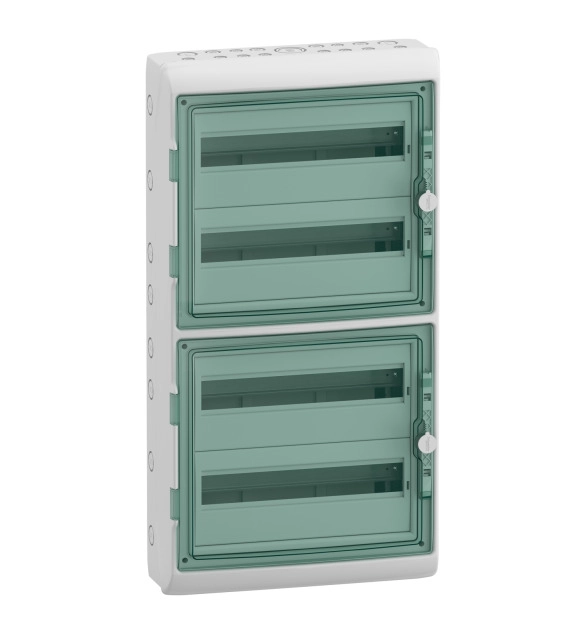

This Mureva Enclosure weatherproof enclosure is a surface mounted enclosure for modular device. It is composed of 2 rows of 12 modules of 18mm. It can accomodate all types of modular switchgear. The IP degree of protection is IP65. This enclosure is dedicated to indoor or outdoor waterproof installation. It is provided with a transparent green door. The colour of the enclosure is light grey (RAL 7035). It is intended for installation in residential, small buildings and industry. The cables can enter by the top or the bottom of the enclosure via 17 pre-cutouts. It is equipped with a back plate and a front cover with notch. It is provided with DIN rail. It comes with 1 terminal block with 32 outgoers (16x10mm² + 16x16mm²). A marking kit are also delivered within the product. The electrical insulation class is class II (double insulated). The overvoltage category is class II. The dissipated power is 34W. The In rated current is up to 63A. This product complies with the IEC 60670-1 and -24 standards. The dimensions are (W) 340mm x (H) 460mm x (D) 160mm. The material is a self-extinguishing polymer material. Its resistance to flames and to abnormal heat is 650°C as per IEC 60695-2-1. It is ultraviolet resistant. The IK degree of protection is IK09. The operating temperature is -25°C to 60°C.
