СКУ: HMISTU855W
STU 5in7 without marking on overlay
-
Brand
Schneider Electric
-
Supporting protocol for SERCOS
FALSE
-
Radio standard GPRS
FALSE
-
Radio standard GSM
FALSE
-
Radio standard UMTS
FALSE
-
Supporting protocol for Foundation Fieldbus
FALSE
-
Supporting protocol for SafetyBUS p
FALSE
-
Voltage type of supply voltage
EV000461
-
Supporting protocol for PROFINET CBA
FALSE
-
Supporting protocol for PROFIsafe
FALSE
-
Supporting protocol for ASI
FALSE
-
Radio standard Bluetooth
FALSE
-
Supporting protocol for PROFIBUS
FALSE
-
Radio standard Wi-Fi 802.11
FALSE
-
Supporting protocol for KNX
FALSE
-
Supporting protocol for CAN
FALSE
-
Supporting protocol for DeviceNet
FALSE
-
Supporting protocol for Data-Highway
FALSE
-
Supply voltage DC
24
-
Supporting protocol for LON
FALSE
-
Supporting protocol for SUCONET
FALSE
-
Degree of protection (IP), front side
EV006423
-
Supporting protocol for EtherNet/IP
TRUE
-
Supporting protocol for Modbus
TRUE
-
Number of HW-interfaces USB
2
-
Type of display
EV005759
-
With colour display
TRUE
-
Number of HW-interfaces RS-232
1
-
Number of HW-interfaces RS-422
1
-
Number of HW-interfaces serial TTY
-
Number of HW-interfaces industrial Ethernet

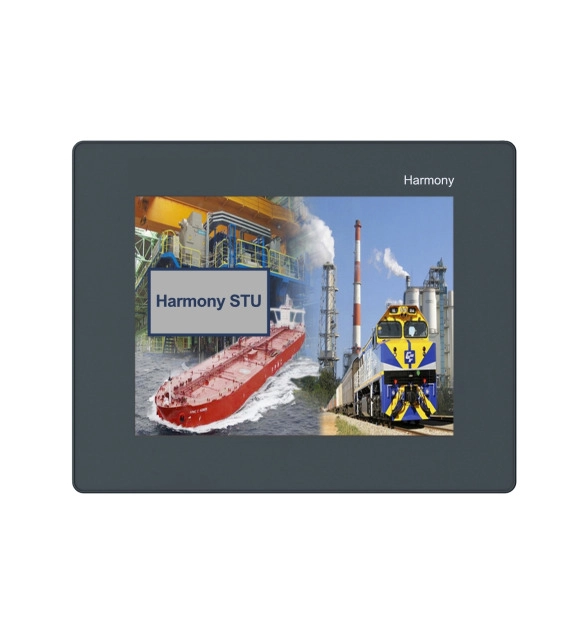

The touch panel screen features 5.7inch TFT color display, supports 320 x 240 pixels QVGA resolution. It is equipped with 1 USB 2.0 type mini B, 1 USB 2.0 type A, removable screw terminal block for power supply and COM1 serial link (female RJ45, RS232C/RS485 integrated). The screen supports Japanese (ANK, Kanji), Chinese (simplified Chinese), Taiwanese (traditional Chinese), Korean and ASCII character fonts. This touch panel screen has 65536 colors with 50,000 hours of backlight lifespan. It is an IP20/IP65 and NEMA 4X rated product. The enclosure is made of PC/PBT and PPA. Its dimensions are 163mm (width) x 56.5mm (depth) x 129.15mm (height). It is suitable for simple machines and infrastructure applications. This product is certified by CULus, C-Tick, UL class 1 Div2 T4A or T5 and Marine. It meets IEC 61000-6-2, UL 508, UL 1604, EN 61131-2 and FCC Class A standards. Harmony STO (fromerly known as Magelis STO) is powered by the EcoStruxure operator terminal expert and STU (fromerly known as Magelis STU) is powered by Vijeo Designer.
