СКУ: LZ2H2X43BD
Стартер Tesys H 0.75kW-400V
-
Brand
Schneider Electric
-
Degree of protection (IP)
EV006405
-
Suitable for emergency stop
FALSE
-
Voltage type for actuating
EV000461
-
Rated control supply voltage Us at DC
24
-
Supporting protocol for SERCOS
FALSE
-
Supporting protocol for INTERBUS-Safety
FALSE
-
Supporting protocol for AS-Interface Safety at Work
FALSE
-
Supporting protocol for DeviceNet Safety
FALSE
-
Supporting protocol for EtherNet/IP
FALSE
-
Supporting protocol for Foundation Fieldbus
FALSE
-
Supporting protocol for SafetyBUS p
FALSE
-
Supporting protocol for PROFINET CBA
FALSE
-
Supporting protocol for PROFINET IO
FALSE
-
Supporting protocol for PROFIsafe
FALSE
-
Supporting protocol for ASI
FALSE
-
Supporting protocol for PROFIBUS
FALSE
-
Supporting protocol for TCP/IP
FALSE
-
Supporting protocol for CAN
FALSE
-
Supporting protocol for INTERBUS
FALSE
-
Supporting protocol for DeviceNet
FALSE
-
Supporting protocol for Modbus
FALSE
-
Supporting protocol for Data-Highway
FALSE
-
Supporting protocol for LON
FALSE
-
Supporting protocol for SUCONET
FALSE
-
With transformer
FALSE
-
Ambient temperature, upper operating limit
70
-
Rail mounting possible
TRUE
-
Supporting protocol for other bus systems
FALSE
-
With fuse
FALSE
-
Rated operation power at AC-3, 400 V
0.75
-
Type of electrical connection of main circuit
EV005752
-
Release class
EV008931
-
Type of motor starter
EV004002
-
With short-circuit release
FALSE
-
External reset possible
TRUE
-
Temperature compensated overload protection
TRUE
-
Number of indicator lights
4
-
Rated operation current Ie
2.4
-
Overload release current setting
0.18
-
Rated operation current at AC-3, 400 V
2.4
-
Width
22.6
-
Depth
113.4
-
Rated operation power at AC-3, 230 V, 3-phase
0.37
-
Rated power, 460 V, 60 Hz, 3-phase
0.75
-
Type of electrical connection for auxiliary- and control current circuit
EV005752
-
Height
107.5
-
Number of auxiliary contacts as normally closed contact
-
Number of auxiliary contacts as normally open contact
-
Number of command positions

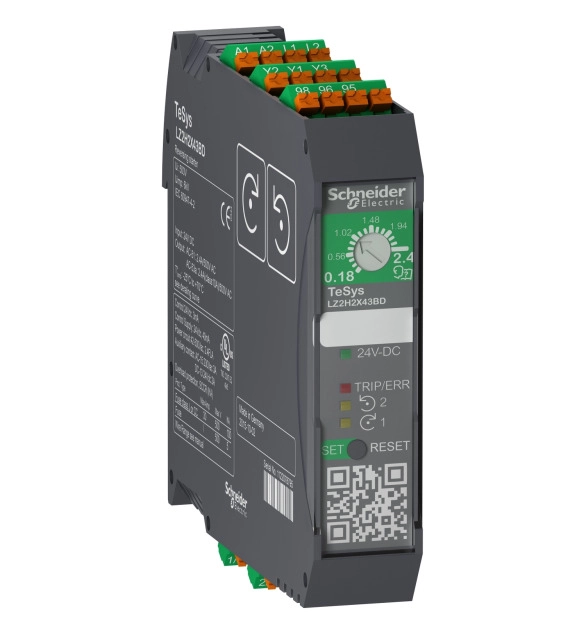

TeSys H ultra compact reverse starter, 3 poles, 2.4A/500V AC-53, for control and protection of 3-phase motors up to 0.75kW@400V (1HP@480V). The hybrid technology used for power contacts procures ultra compactness (22.5mm width) as well as an extended electrical durability up to 30 million cycles AC-53. It provides control for 2 directions of rotation, an adjustable motor current 0.18-2.4A, class 10A thermal overload protection with auto/manual/remote reset, phase loss and phase unbalanced protection, stall and jam motor protection. To be supplied with 24V DC, it provides logic inputs for FW/RV motor direction and remote reset after thermal tripping, 1C/O contact relay for fault indication, LED status on front face for indication of tripping and motor running. DIN rail mounting, spring terminals for control and power, it can be used without derating for ambient temperatures from -25 to 70°C. Multi standards certified (IEC, UL, CCC).
