СКУ: SSL1D03BD
SSR реле - 1 PHASE 24VDC 3.5A 24V
-
Brand
Schneider Electric
-
Number of phases
1
-
Voltage type for actuating
EV000461
-
Modular version
TRUE
-
Switching at zero-crossing
FALSE
-
Operating voltage
1
-
Rated operation current Ie at AC-53a
3.5
-
Rated operation current Ie at AC-51
3.5
-
Rated operation current Ie at AC-53b
3.5
-
Rated control supply voltage Us at DC
15
-
Rated operation current Ie at AC-1
3.5
-
Rated operation current Ie at AC-3
3.5

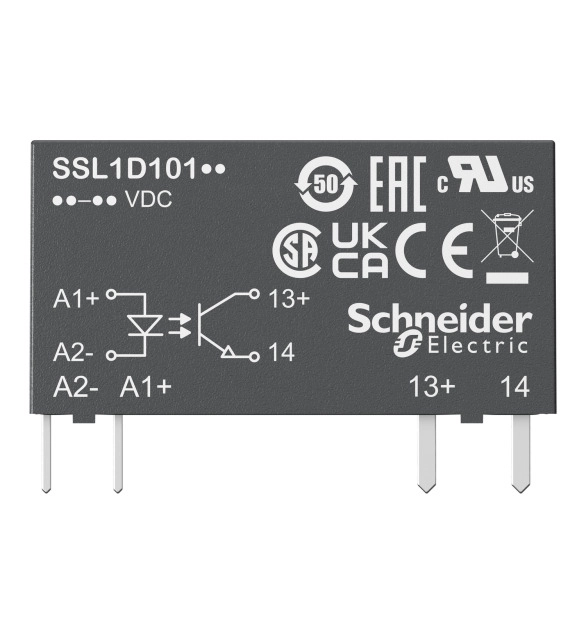

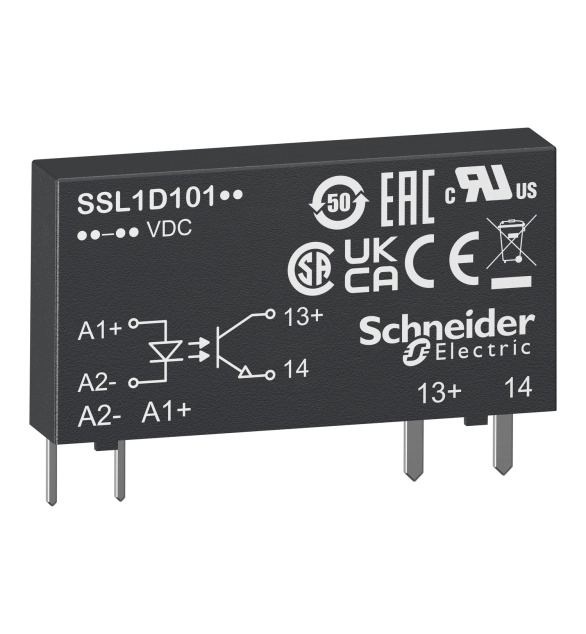

This product belongs to Schneider Electric's Harmony Solid State Relays range. It is a slim interface plug-in relay. This is a 3.5A DC switching slim relay that is controlled with a 15V to 30V DC input and has a rated load output voltage of 3V to 30V DC. It is silent and reliable thanks to the absence of moving contacts. Thanks to its IP20 rating with socket, it is also shock, vibration, and pollution resistant, making it ideal for harsh industrial environments. It is 6mm width, including socket, to save space in your control cabinets. This relay is the ideal solution for packaging, HVAC, injection molding, textile machines, medical equipment, and heating control applications. It conforms to international standards and certifications, such as IEC, cURus, CSA, CE, ROHS, EAC, UKCA, and REACH. It is sold in lots of 10. The Solid State Relays are a complete range of control input and load output configurations for both AC and DC switching applications. The pre-assembled range in SSL allows for easier selection, time-saving installation, and robustness.
