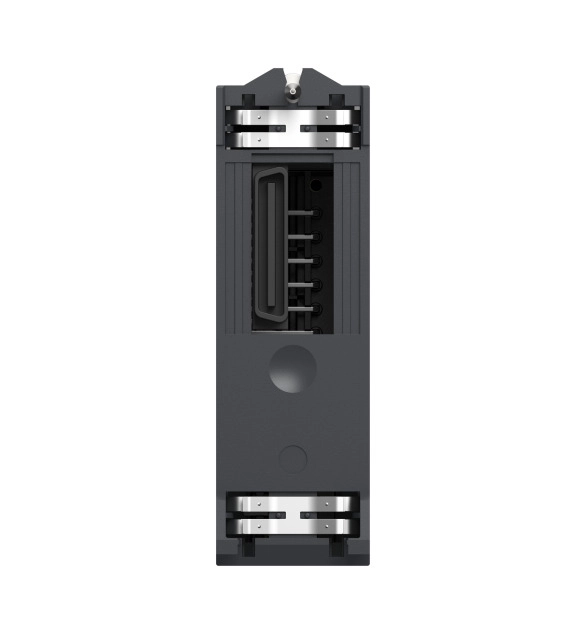

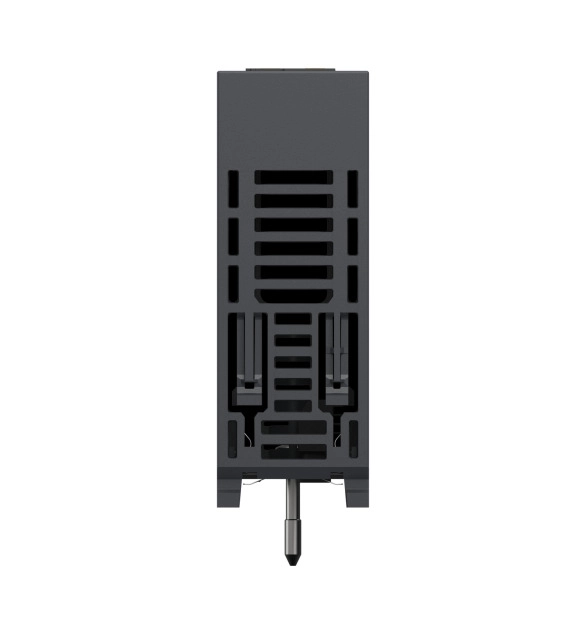

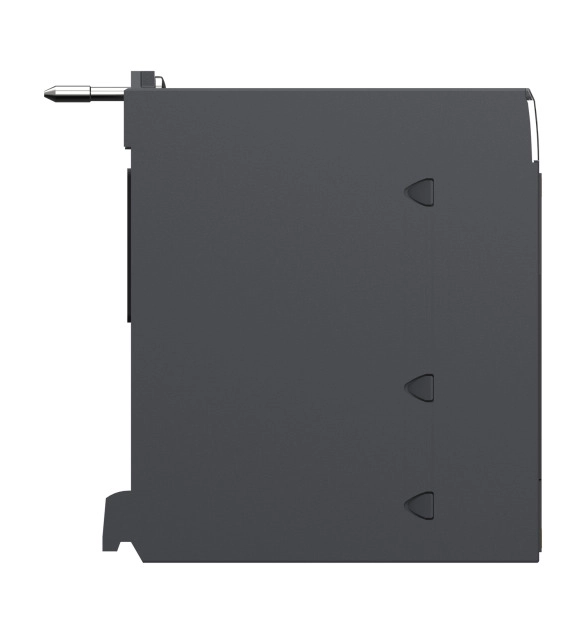

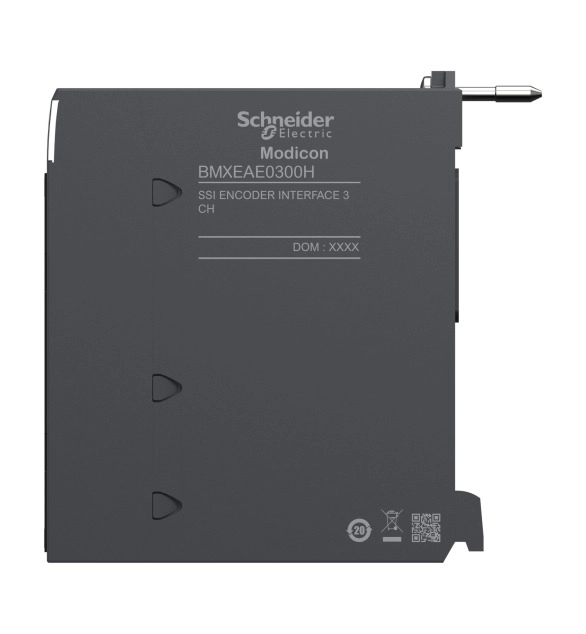

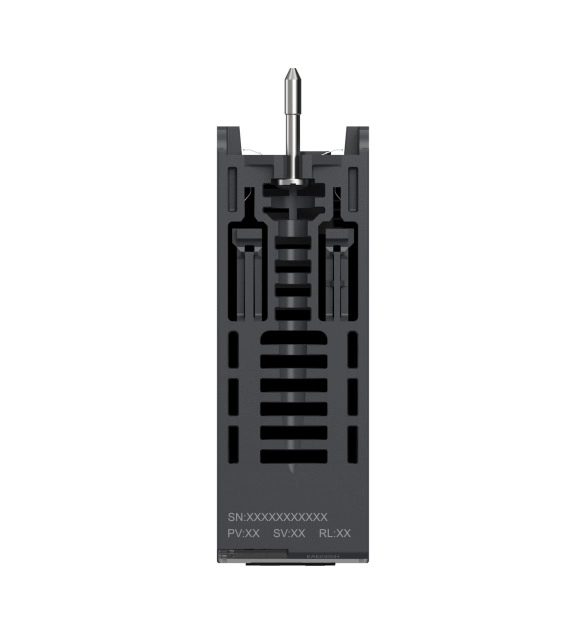

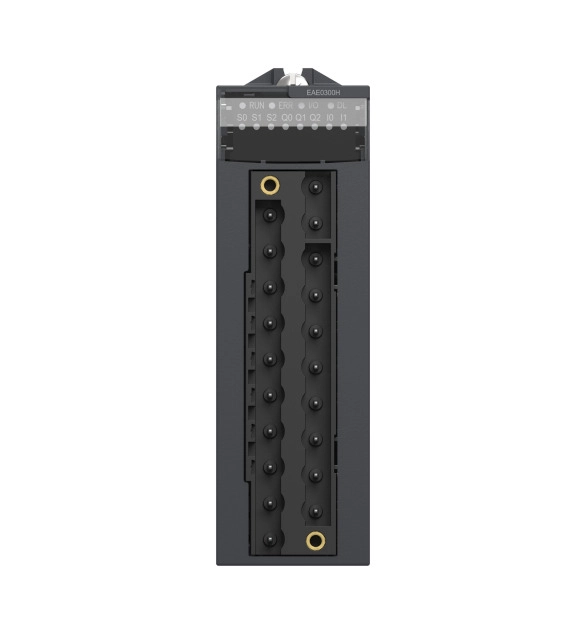

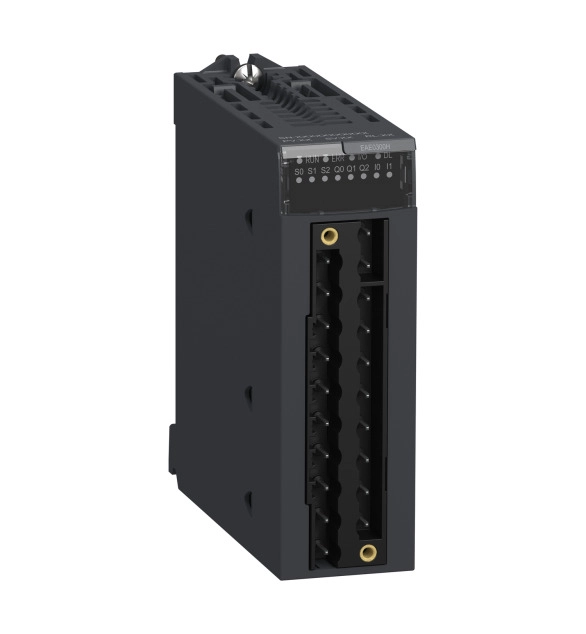

СКУ: BMXEAE0300H
SSI Encoder Interface 3-Ch (Hardened)
-
Brand
Schneider Electric
-
SIL according to IEC 61508
EV000494
-
Performance level according to EN ISO 13849-1
EV000494
-
Explosion safety category for dust
EV000494
-
Explosion safety category for gas
EV000494
-
Appendant operation agent (Ex ia)
FALSE
-
Appendant operation agent (Ex ib)
FALSE
-
Suitable for safety functions
FALSE
-
Height
100
-
Digital inputs configurable
FALSE
-
Digital outputs configurable
TRUE
-
Number of digital outputs
8
-
Depth
150
-
Voltage type of supply voltage
EV000509
-
Type of voltage (input voltage)
EV000509
-
Redundancy
FALSE
-
Type of electric connection
EV000414
-
Number of digital inputs
-
Short-circuit protection, outputs available
TRUE
-
Type of output voltage
EV000509
-
Output current
2
-
Type of digital output
EV000511
-
Time delay at signal exchange
-
Width
33
-
Input current at signal 1
0.65
-
Permitted voltage at output
125
-
Permitted voltage at input
125
-
Supply voltage AC 50 Hz
250
-
Supply voltage AC 60 Hz
250
-
Supply voltage DC
125
This discrete relay output module is part of the Modicon X80 range, an offer of common input/output and communication modules, power supplies and racks for Modicon M340 and Modicon M580. This product is composed of 16 normally open relay outputs and it is supplied with 24 to 240V AC/24 to 48V DC. This ruggedized product can be used in more severe environments, and operate in an extended temperature range, from -25°C to +70°C/-13°F to 158°F. Modicon X80 modules provide a single environment for the deployment of I/O modules in automation architectures by reducing spare parts inventory, maintenance and training costs. It offers electrical durability of 100000, 300000, 50000, 7000 cycles and 1357810 hours of MTBF. This product is IP20 rated and offers 2066927 hours of MTBF. This discrete module has a weight of 0.150kg and dimensions of 32x100x86mm. This product meets the needs of our customers from Smart Infrastructure, Water and Waste Water, Consumer Packaged Goods, Mining Minerals Metals, Data centers and Power generation. This product is certified by CE, UL, CSA, RCM, EAC, UKCA, Merchant Navy and meets EN 61000-6-5, EN 61850-3, EN 61131-2 standards. This module is compatible with Modicon M340, M580 (Local or Remote I/O) PLCs with a 20-way caged, screw clamp, or spring-type removable terminal block. The product must be installed on the rack and fixed with 2 screws. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC).
