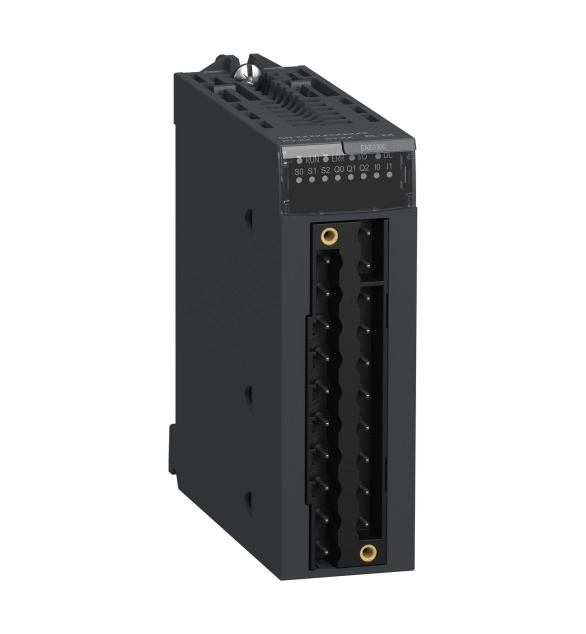

СКУ: BMXEAE0300
SSI Encoder Interface 3-Ch
-
Brand
Schneider Electric
-
SIL according to IEC 61508
EV000494
-
Performance level according to EN ISO 13849-1
EV000494
-
Explosion safety category for dust
EV000494
-
Explosion safety category for gas
EV000494
-
Appendant operation agent (Ex ia)
FALSE
-
Appendant operation agent (Ex ib)
FALSE
-
Suitable for safety functions
FALSE
-
Height
100
-
Redundancy
FALSE
-
Width
150
-
Suitable for temperature control
FALSE
-
Suitable for NC
FALSE
-
Suitable for welding control
FALSE
-
Suitable for pressure control
FALSE
-
Suitable for CNC
FALSE
-
Suitable for flux controller
FALSE
-
Suitable for flux measurement
FALSE
-
Suitable for flying saw
FALSE
-
Suitable for path controller
FALSE
-
Suitable for cam controller
FALSE
-
Suitable for detection absolute value
TRUE
-
Suitable for counting
TRUE
-
Suitable for electronic positioning
TRUE
-
Suitable for single-axis positioning
TRUE
-
Suitable for single-axis controller
TRUE
-
Suitable for multi-axis positioning
TRUE
-
Suitable for SSI
TRUE
-
Suitable for incremental data detection
TRUE
-
Suitable for multi-axis control
TRUE
-
Depth
242
-
Number of functions
5
-
Suitable for weighing
TRUE
This SSI encoder interface module is part of the Modicon X80 range, an offer of common input/output for Modicon M340 and Modicon M580. This encoder interface module has 3 SSI channels. The Modicon X80 automation platform complies with "TC" treatment requirements (treatment for all climates) and can operate in temperatures ranging from 0°C to +60°C/32°F to 140°F. It is an encoder interface module with a rated supply voltage of 24V DC, a current consumption of 250mA at 3.3V DC. Its casing provides IP20 protection of the electronics. This module has a weight of 0.138kg and dimensions of 32x100x86mm. This product meets the needs of our customers from Smart Infrastructure, Water and Waste Water, Consumer Packaged Goods, Mining Minerals Metals, Data centers and Power generation. This product complies with CE, UL, CSA, RCM, and EAC standards and is certified for Power Generation, Merchant Navy, Railway and Hazardous areas applications. This input is compatible with 24V DC SSI absolute encoder for 200mA per channel. The product must be installed on the rack and fixed with 2 screws. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC). Modicon X80 provides a single environment for the deployment of I/O modules in automation architectures by reducing spare parts inventory, maintenance and training costs.
