СКУ: SSD1A360BDC3
SS relay zero sprg 4 32V-48 600V 60A
-
Brand
Schneider Electric
-
Number of phases
1
-
Voltage type for actuating
EV000461
-
Modular version
TRUE
-
Switching at zero-crossing
FALSE
-
Operating voltage
1
-
Rated operation current Ie at AC-53a
0.1
-
Rated operation current Ie at AC-51
0.1
-
Rated operation current Ie at AC-53b
0.1
-
Rated control supply voltage Us at DC
1
-
Rated operation current Ie at AC-1
0.1
-
Rated operation current Ie at AC-3
0.1

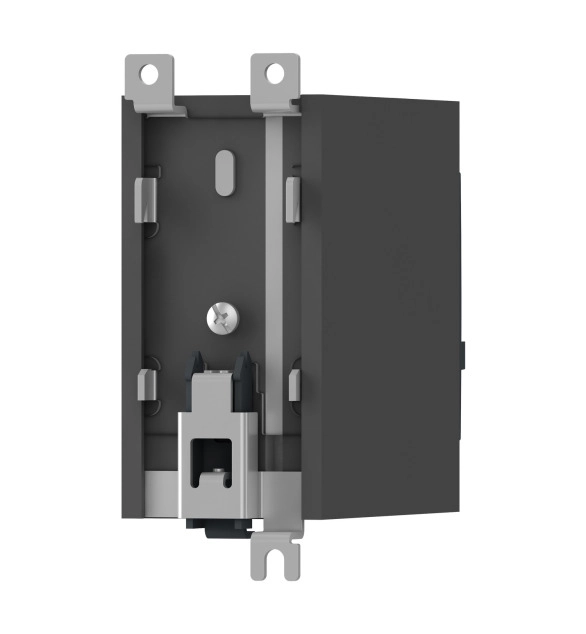

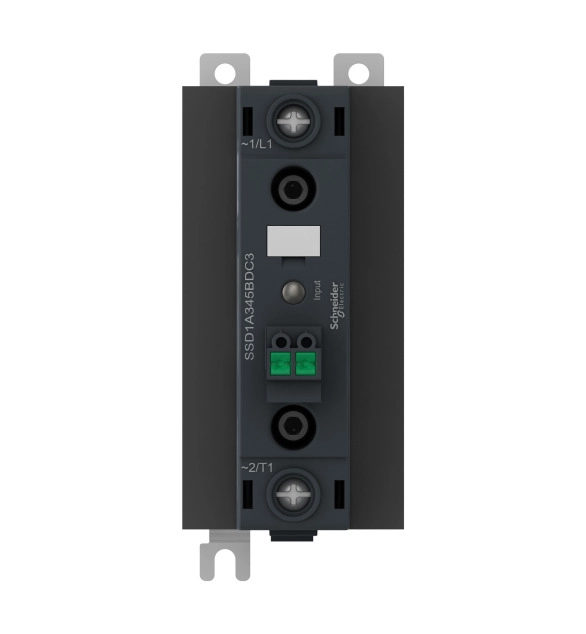

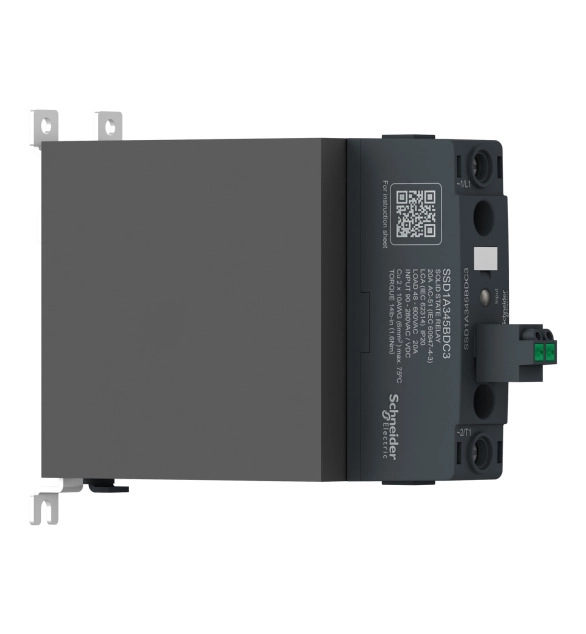

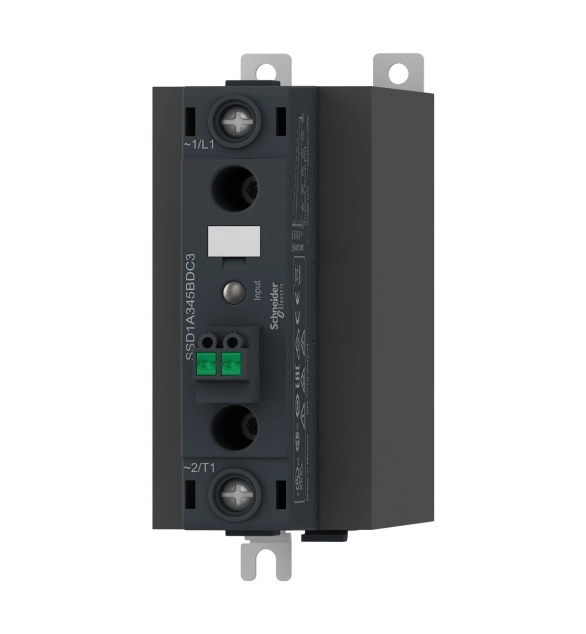

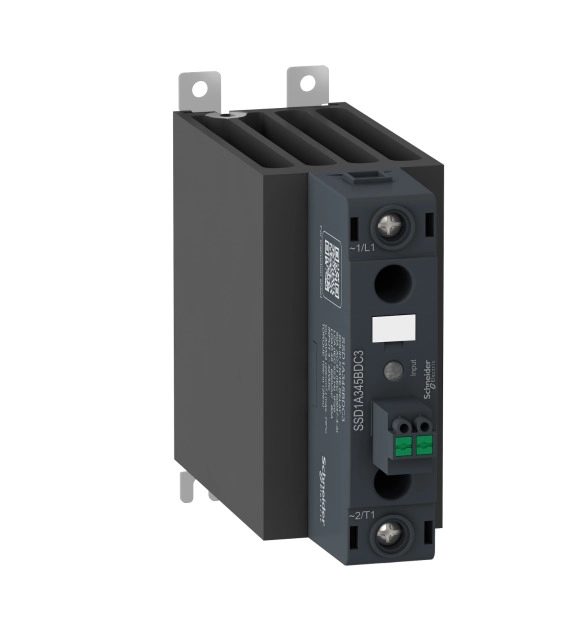

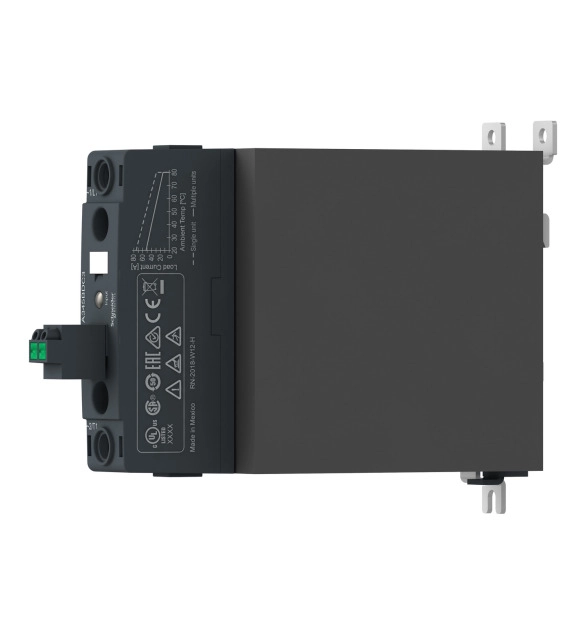

This solid state DIN rail mounted relay belongs to the Schneider Electric Harmony solid state relays range. This electrical relay mounts on 35mm DIN rail and comes with a secure mounting latch. This is a 60A power rated relay with pluggable spring input contactor type configuration and zero voltage switching. This single-phase relay has a IP20 built-in heat sink and a built-in transient overvoltage protection. It is controlled with a 4Vdc to 32Vdc input, has a rated load voltage of 48Vac to 600Vac. It also has a LED input voltage status indicator and clip-in legend for easy identification. It weighs 0.507Kg and its dimensions are, 45mm wide, 154.4mm deep, 111.5mm high. It is the ideal solution for packaging, plastic molding, textile, and heating furnace applications. This relay conforms to international standards like EN/IEC 60068, IEC 61373, UL 508, CSA C22.2 No 14-13 and certifications like UL and CSA. Besides the existing standard screw connection for input and output, SSD provides more wiring options like the spring or screw pluggable input connectors, and telescopic or clamp cage output terminals.
