СКУ: VW3A7607R07

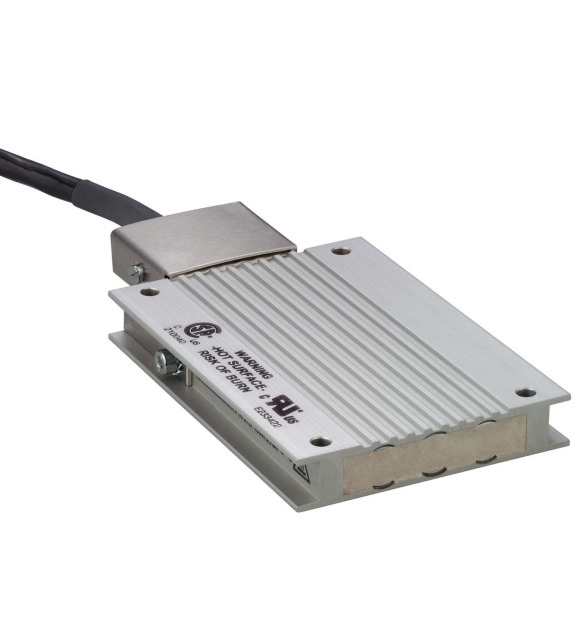

Спирачен резистор - 72 ohm - 400 W - кабел 0.75м - IP65
-
Brand
Schneider Electric
-
Accessory
TRUE
-
Spare part
FALSE
-
Type of accessory/spare part
EV008556
This braking resistor allows your drive to operate while braking to a standstill or during slowdown braking. It dissipates the braking energy, and enables maximum transient braking torque. It has anohmic value of 100Ohms and a cable length of 0.75m. This external braking resistor is required to dissipate the excess braking energy when the servo motor has to be braked frequently. Its protection index is IP65. The operating temperature around the unit can be between 0degrecentigrade and plus 50degrecentigrade. It weighs 0.410kg. The external braking resistor is required to dissipate the excess braking energy when the servo motor has to be braked frequently. It is compliant with Low Voltage Directive 2014/35/EU and EMC Directive 2014/30/EU. This external braking resistor is compatible with Easy Lexium 16 servo drives. It is sold by one piece. This resistor is designed to be mounted on the outside of the enclosure. Easy Lexium 16 servo drive and BCH16 servo motor combinations are specially designed for easy integration & commissioning in your machine. Easy Lexium 16 servo drive and BCH16 servo motor combinations provide the right level of performance for the majority of simple motion control machines.
