СКУ: LV429358

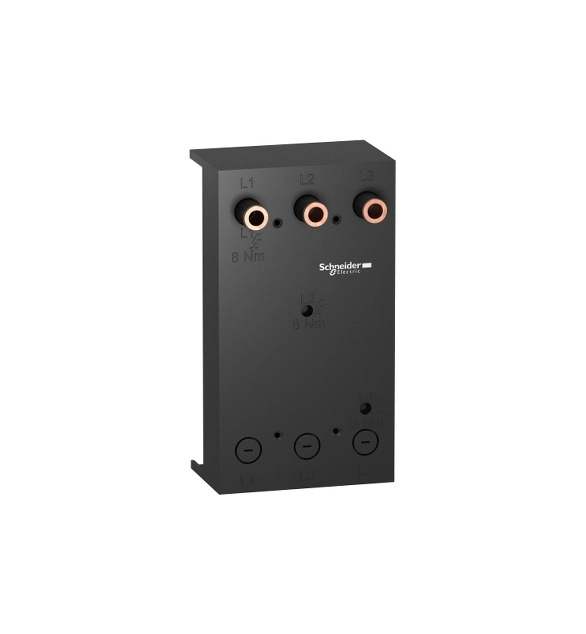

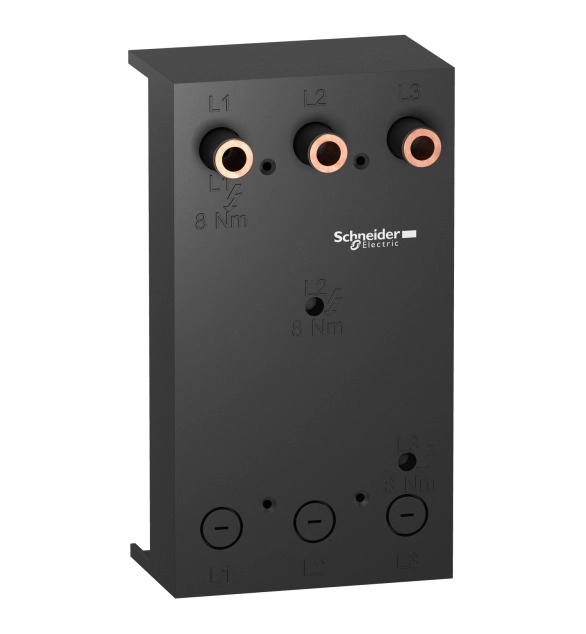

source change-over accessories - 3 полюса - 100...250 A

  • Brand
    Schneider Electric
  • Width of the adapter
    104
  • Busbar distance
    60
  • Min. busbar thickness
    5
  • Rated current In
    250
  • Max. busbar thickness
    10
  • Mounting rail armament
    EV000494

It is a double early break contact that indicates the position of the rotary handle for Compact NSX 100 to 630 and PowerPact Multistandard H/J/L circuit breakers. An early make contact (CAM), in conjunction with a rotary handle, can be used to anticipate device closing. The contact fits into the rotary handle unit. These auxiliaries are 2 common point changeover type contacts with 1 normally open contact and 1 normally closed contact. The rated current is 6A and the minimum load is 100mA at 24 VDC. utilization categories are AC12/AC15/DC12/DC14. Compact NSX and PowerPact chassis can be equipped with 1 early break contact. It complies with IEC 60947-5-1 standard.
