СКУ: NSYSM16840T

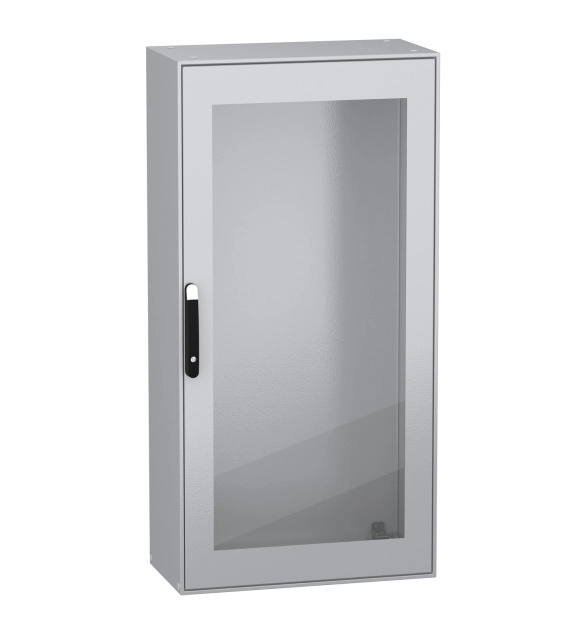

SM glazed door wo/mp 1600x800x400
-
Brand
Schneider Electric
-
With mounting plate
FALSE
-
EMC-version
FALSE
-
RAL-number
7035
-
Colour
EV000270
-
Degree of protection (IP)
EV006420
-
Surface finishing
EV008895
-
Material
EV000179
-
Number of doors
1
-
With backside door
FALSE
-
Depth
400
-
Material quality
EV000154
-
With glazed door
TRUE
-
Degree of protection (NEMA)
EV022254
-
Width
800
-
Connectable
FALSE
-
Suitable for outdoor set-up
FALSE
-
Detached
FALSE
-
Suitable for metrical mounting
TRUE
-
Pitched roof
FALSE
-
Floor standing wall model
TRUE
-
Intermediate mounting
FALSE
-
Corner model
FALSE
-
Suitable for wall mounting
FALSE
-
Suitable for wall built-in
FALSE
-
Mounting plate depth-adjustable
FALSE
-
With ventilation door
FALSE
-
Pole fastening
FALSE
-
Height
1600
-
Impact strength
EV006814
-
Number of locks
1
-
Max. permissible load of the enclosure according to IEC 62208
4900
-
Max. permissible load of the door(s) according to IEC 62208
588
-
Max. permissible load of the mounting plate according to IEC 62208
3090
PanelSeT SM is a multi-purpose low-carbon steel compact monobloc floor-standing enclosure designed for use in harsh environments. It has a nominal height, width and depth of 1600mm, 800mm and 400mm respectively. The enclosure is made in grey color (RAL7035) with an epoxy-polyester powder surface finish and the handle is made in black color (RAL9005) It consists of one body, one glazed door, one cable gland plate with one entry and four mounting plate brackets. The door can be opened up to 120°, allowing easy access to the equipment inside. The enclosure has a four-point lock with a handle with 5mm double-bar insert. The door and the mounting plate brackets can be removed for maintenance purposes. It is certified by BV and UL and marine certified by DNV. This enclosure has IP55 ingress protection rating against dust and water and IK08 impact protectoin rating.
