СКУ: NSYS3D6625P

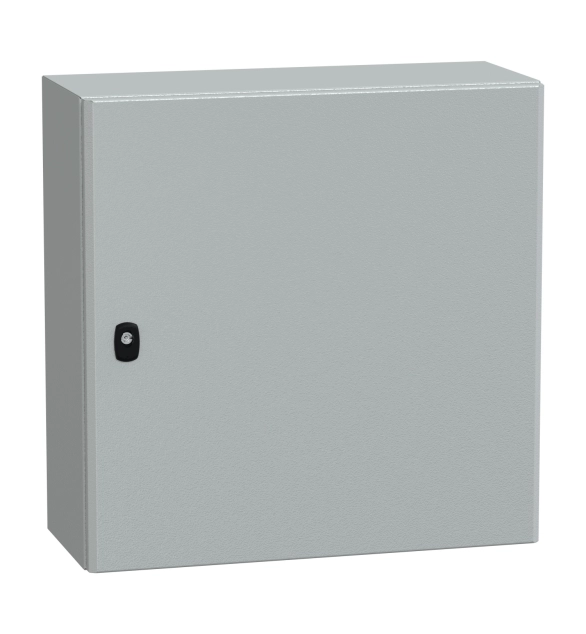

Шкаф S3D H600xW600xD250+plain chassis
-
Brand
Schneider Electric
-
EMC-version
FALSE
-
RAL-number
7035
-
Colour
EV000270
-
With mounting plate
TRUE
-
Surface finishing
EV008895
-
Material
EV000179
-
With glazed door
FALSE
-
Number of doors
1
-
With backside door
FALSE
-
Material quality
EV000154
-
Degree of protection (NEMA)
EV014040
-
Degree of protection (IP)
EV006422
-
Width
800
-
Height
600
-
Connectable
FALSE
-
Suitable for outdoor set-up
FALSE
-
Depth
300
-
Detached
FALSE
-
Suitable for metrical mounting
TRUE
-
Pitched roof
FALSE
-
Floor standing wall model
TRUE
-
Intermediate mounting
FALSE
-
Corner model
FALSE
-
Suitable for wall built-in
FALSE
-
Mounting plate depth-adjustable
FALSE
-
With ventilation door
FALSE
-
Suitable for wall mounting
TRUE
-
Impact strength
EV008784
-
Number of locks
1
-
Pole fastening
TRUE
-
Max. permissible load of the mounting plate according to IEC 62208
250
-
Max. permissible load of the enclosure according to IEC 62208
250
-
Max. permissible load of the door(s) according to IEC 62208
50
PanelSeT S3D steel wall-mounting enclosure for multi-purpose applications is designed to provide superior protection in harsh environments It has a high resistance to dust and water with an IP66 rating (IEC60529) and is impact resistant with an IK10 rating (IEC62262) This enclosure has a nominal height, width and depth of 600mm, 800mm and 300mm, respectively The enclosure is grey-coloured (RAL7035) with an epoxy-polyester powder surface finish The enclosure consists of a body, two cable gland plates, one mounting plate, one plain door and a lock The door can be opened up to 120°, allowing easy access to the equipment inside Furthermore, it is possible to change the opening side of the door (reversible) The door has a three-point lock with a 3mm double-bar insert The door, the cable gland plates and the mounting plate can be removed for maintenance purposes The net weight of the enclosure is 33kg It is certified by UL, BV, LR, cUL, DNV and GL
