СКУ: VW3A5407
Синус изходен филтър IP00 300A
-
Brand
Schneider Electric
-
Rated operation frequency
50
-
Suitable as sinus filter
TRUE
-
Suitable as radio interference suppression filter
FALSE
-
Degree of protection (IP)
EV006404
-
Suitable as audio frequency blockage
FALSE
-
Number of poles, primary side
3
-
Suitable as du/dt-filter
FALSE
-
Max. rated operation voltage Ue
480
-
Rated current at AC
305
-
Rated clock frequency
6

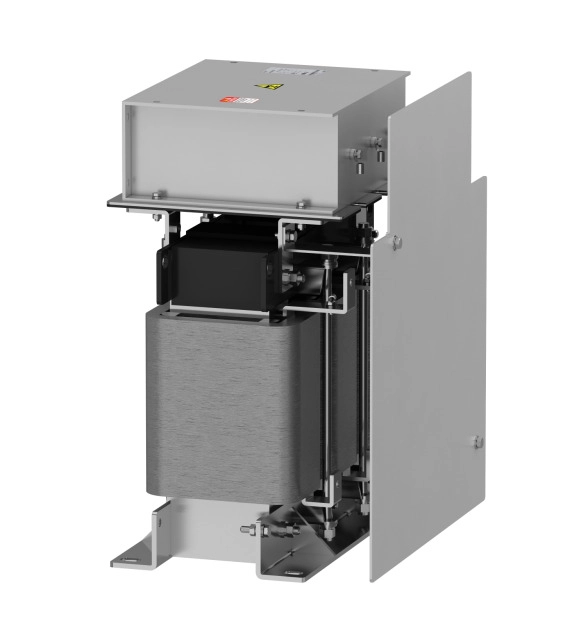

This sinus filter is an option for variable speed drives of Altivar Process ATV600 / ATV900 range. Its rated current is equal to 305A. It is used as an output filter (between drive output and motor) and enables your variable speed drive to run with motor cables longer than the maximum permitted lengths. Its protection index is IP00. It weighs 134kg. It is used for applications requiring long cable runs, motors connected in parallel, submersible pumps sensitive to dv/dt, an intermediate transformer between the drive and the motor.
