СКУ: XB7EV05BP

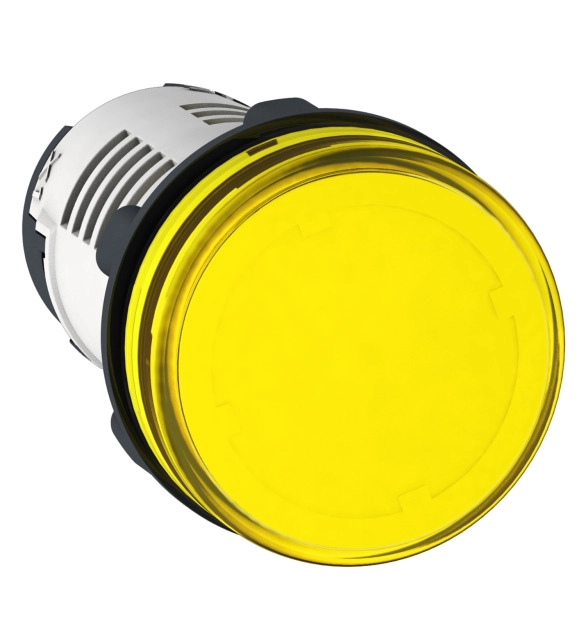

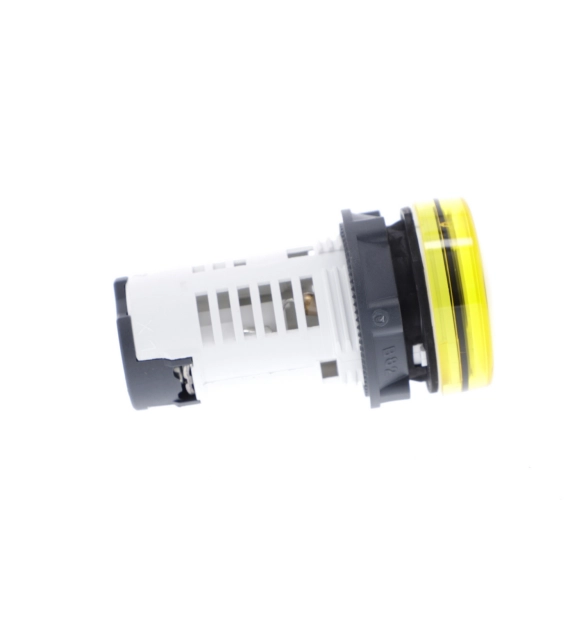

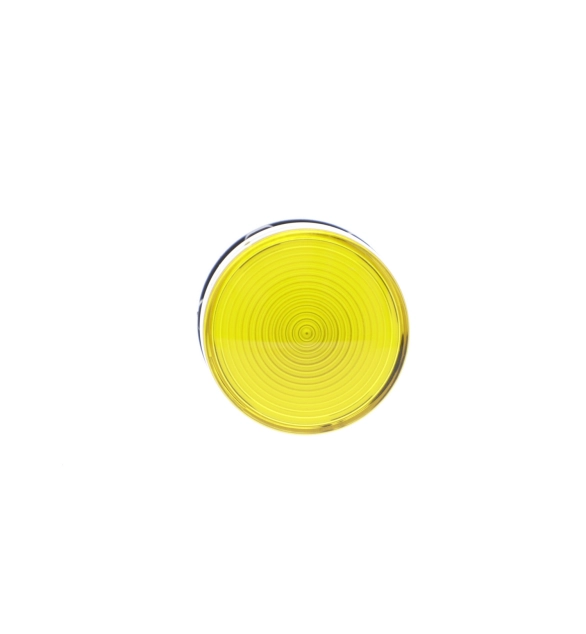

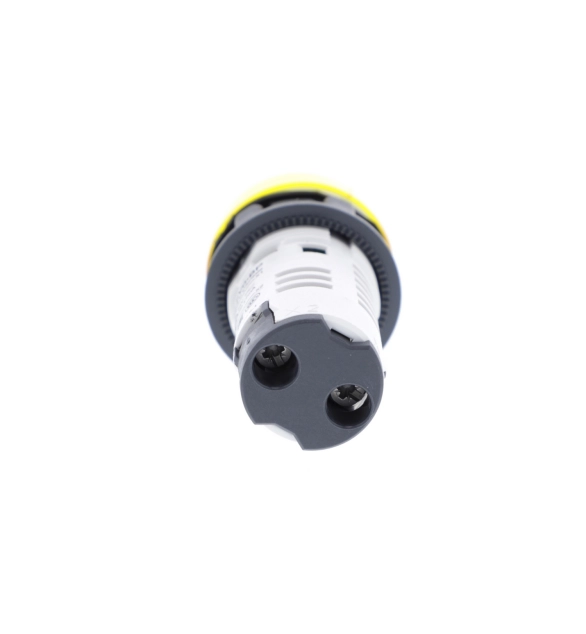

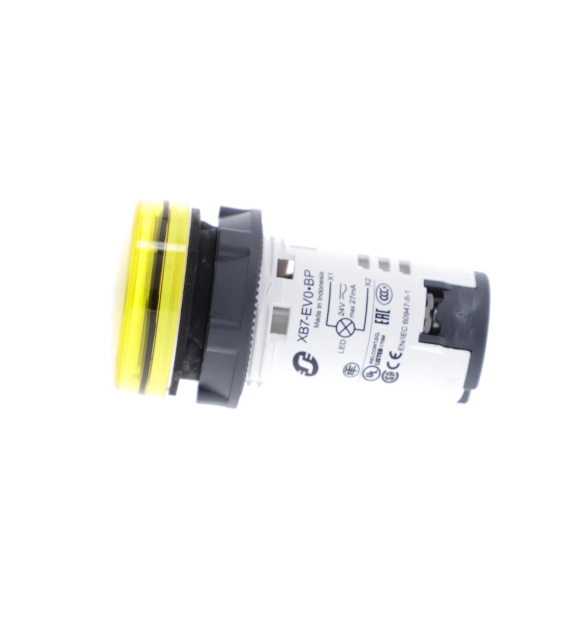

Сигнална лампа жълта LED 24V XB7EV05BP
-
Brand
Schneider Electric
-
Number of contacts as normally open contact
1
-
Type of electric connection
EV000415
-
Spring-return
FALSE
-
Hole diameter
22.5
-
Material front ring
EV000139
-
Switching function latching
TRUE
-
Construction type lens
EV000167
-
With front ring
TRUE
-
Colour front ring
EV000206
-
Degree of protection (IP)
EV006419
-
Degree of protection (NEMA)
EV000154
-
Number of contacts as normally closed contact
-
Number of contacts as change-over contact
-
Type of button
EV003619
-
Number of command positions
1
-
Colour button
EV000235
-
Suitable for illumination
TRUE
-
Supply voltage lamp
230
This Harmony XB7, plain lens monolithic yellow pilot light is supplied with 24V AC/DC, uses an integral LED and screw clamp terminals. It is easily installed into standard 22mm diameter cut-outs and connected with simple screw-clamp connections. It is clearly distinguishable visually at a distance due to clear colors and illumination via integral LED, enabling complex machine statuses to be read at a glance. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65, making it ideal for operation in harsh environments. It has a double insulated plastic bezel. Its wide range of operating temperatures from -25°C to 70°C allows versatility in usage of product.
