СКУ: LMC802CAA10000

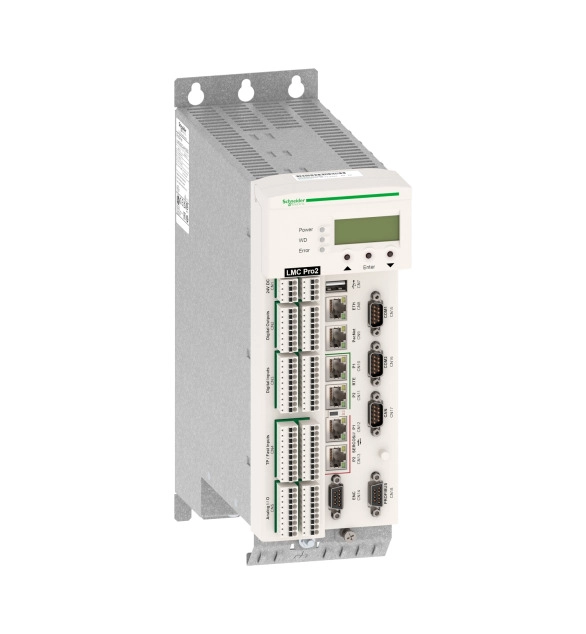

Севро контролер LMC802 130 оси - Acc kit - Базов
-
Brand
Schneider Electric
-
SIL according to IEC 61508
EV000494
-
Performance level according to EN ISO 13849-1
EV000494
-
Radio standard GPRS
FALSE
-
Supporting protocol for INTERBUS-Safety
FALSE
-
Supporting protocol for AS-Interface Safety at Work
FALSE
-
Radio standard GSM
FALSE
-
Explosion safety category for dust
EV000494
-
Radio standard UMTS
FALSE
-
Explosion safety category for gas
EV000494
-
Supporting protocol for DeviceNet Safety
FALSE
-
Supporting protocol for Foundation Fieldbus
FALSE
-
Supporting protocol for SafetyBUS p
FALSE
-
Voltage type of supply voltage
EV000461
-
Supporting protocol for PROFINET CBA
FALSE
-
Supporting protocol for PROFIsafe
FALSE
-
Supporting protocol for ASI
FALSE
-
Radio standard Bluetooth
FALSE
-
Appendant operation agent (Ex ia)
FALSE
-
Radio standard Wi-Fi 802.11
FALSE
-
Supporting protocol for TCP/IP
FALSE
-
Front built-in possible
FALSE
-
Supporting protocol for KNX
FALSE
-
Appendant operation agent (Ex ib)
FALSE
-
Supporting protocol for INTERBUS
FALSE
-
IO link master
FALSE
-
Supporting protocol for DeviceNet
FALSE
-
Rail mounting possible
FALSE
-
Supporting protocol for Modbus
FALSE
-
Suitable for safety functions
FALSE
-
Supporting protocol for Data-Highway
FALSE
-
Supply voltage DC
24
-
Supporting protocol for LON
FALSE
-
Supporting protocol for SUCONET
FALSE
-
Supporting protocol for other bus systems
FALSE
-
Height
310
-
With optical interface
FALSE
-
System accessory
FALSE
-
With display
TRUE
-
Supporting protocol for EtherNet/IP
TRUE
-
Number of HW-interfaces other
1
-
Supporting protocol for CAN
TRUE
-
Wall mounting/direct mounting
TRUE
-
Number of HW-interfaces RS-485
1
-
Number of HW-interfaces industrial Ethernet
1
-
Number of HW-interfaces RS-232
1
-
Number of analogue outputs
2
-
Number of analogue inputs
2
-
Redundancy
FALSE
-
Width
100
-
Supporting protocol for IEC 61850 Ethernet
FALSE
-
Rack-assembly possible
TRUE
-
Number of HW-interfaces RS-422
1
-
Number of HW-interfaces USB
1
-
Supporting protocol for IEC 60870
FALSE
-
Supporting protocol for DNP3
FALSE
-
Model
EV002153
-
Long-Term Evolution (LTE)
FALSE
-
Type of memory
EV009358
-
Additional program memory possible
FALSE
-
Supporting protocol for PROFIBUS
TRUE
-
Supporting protocol for PROFINET IO
TRUE
-
Number of digital inputs
20
-
Supporting protocol for SERCOS
TRUE
-
Depth
243
-
Processing time (1K, binary operation)
0.002
-
Memory size
256
-
Number of HW-interfaces parallel
-
Number of interfaces PROFINET
-
Number of HW-interfaces Wireless
-
Max. number of time switches
-
Number of relay outputs
-
Number of digital outputs
20
This product is part of the PacDrive 3 range, an offer of motion controllers for automating machines/lines. This motion controller offers 130 axis, 20 discrete inputs, 4 for interrupt input and 16 for touch probe input conforming to IEC 61131-2 type 1. It is a motion controller with a rated supply voltage of 24VDC, a discrete output current of 250mA and a power consumption of 36W. It is an IP20 rated product. Its dimensions are 100mm (width) x 243mm (depth) x 310mm (height). It weighs 3.5kg. This product is certified by CULus, CSA, CE, EAC. It meets CSA C22.2 No 14, CSA C22.2 No 274, EN/IEC 61131-2, UL 508C standards. Motion controllers for automating machines/lines with 0 - 130 servo or robot axes. PacDrive 3 LMC controllers provide scalable performance for synchronizing up to 130 servo axes at 1msnetwork update rate and for up to 255 virtual axes.
