СКУ: LXM28AU15M3X

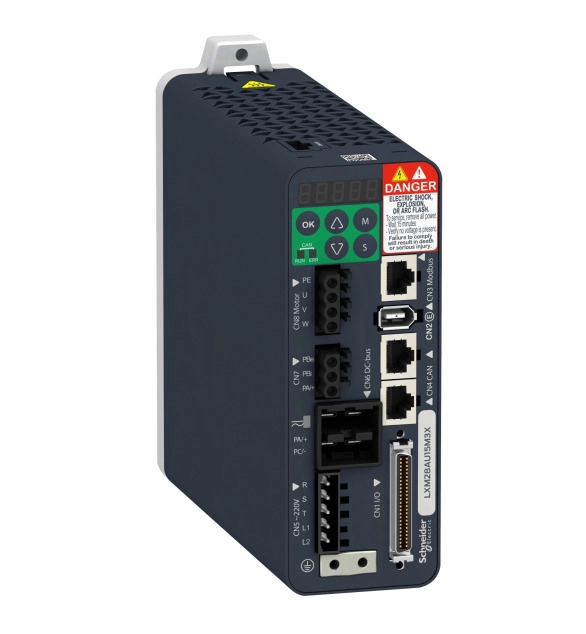

Серво задвижване, Lexium 28, single and three phase 200...230 V, 1.5 kW
-
Brand
Schneider Electric
-
Degree of protection (IP)
EV006405
-
Supporting protocol for SERCOS
FALSE
-
Supporting protocol for INTERBUS-Safety
FALSE
-
Supporting protocol for AS-Interface Safety at Work
FALSE
-
Supporting protocol for DeviceNet Safety
FALSE
-
Supporting protocol for EtherNet/IP
FALSE
-
Supporting protocol for Foundation Fieldbus
FALSE
-
Supporting protocol for SafetyBUS p
FALSE
-
Supporting protocol for PROFINET CBA
FALSE
-
Supporting protocol for PROFINET IO
FALSE
-
Supporting protocol for PROFIsafe
FALSE
-
Supporting protocol for ASI
FALSE
-
Supporting protocol for PROFIBUS
FALSE
-
Supporting protocol for TCP/IP
FALSE
-
Supporting protocol for KNX
FALSE
-
Supporting protocol for INTERBUS
FALSE
-
Supporting protocol for DeviceNet
FALSE
-
Supporting protocol for Data-Highway
FALSE
-
Supporting protocol for LON
FALSE
-
Supporting protocol for SUCONET
FALSE
-
Height
150
-
Supporting protocol for other bus systems
FALSE
-
Width
55
-
With control element
TRUE
-
With optical interface
FALSE
-
Supporting protocol for Modbus
TRUE
-
Number of HW-interfaces RS-422
2
-
Supporting protocol for CAN
TRUE
-
Number of HW-interfaces RS-485
1
-
Number of analogue outputs
1
-
Number of digital inputs
6
-
With PC connection
FALSE
-
Supporting protocol for BACnet
FALSE
-
Depth
170
-
Number of digital outputs
2
-
Mains frequency
EV008015
-
Number of phases output
EV000069
-
Relative symmetric net voltage tolerance
10
-
Relative symmetric net frequency tolerance
5
-
Application in industrial area permitted
TRUE
-
4-quadrant operation possible
FALSE
-
Number of phases input
EV000599
-
Application in domestic- and commercial area permitted
TRUE
-
Max. output at quadratic load at rated output voltage
1.5
-
Max. output at linear load at rated output voltage
1.5
-
Number of analogue inputs
3
-
Max. output voltage
240
-
Integrated breaking resistance
TRUE
-
Type of converter
EV009198
-
Mains voltage
220
-
Max. output frequency
16
-
Nominal output current I2N
7
-
Number of HW-interfaces parallel
-
Number of interfaces PROFINET
-
Number of HW-interfaces serial TTY
-
Number of HW-interfaces USB
-
Number of HW-interfaces industrial Ethernet
-
Number of HW-interfaces RS-232
-
Number of HW-interfaces other
This product is part of the Lexium 28 range, an offer of servo drives from 0.05kW to 4.5kW. The motion servo drive features EMC filter, integrated CANopen, CAN motion interface 7-segment display with 5 buttons. It is a motion servo drive with a rated supply voltage of 220V (single and three phase), an output current of 7A, nominal power of 1.5kW and continuous power of 1500W. It is furnished with spring terminal for electrical connection and RJ45 connectors (CN4) for CANopen/CAN motion. There is an electrical isolation between power/control. It offers CANopen and CAN motion communication interfaces and physical interface of RS485 for Modbus Serial line slave. It is an IP20 rated product. Its dimensions are 55mm (width) x 170mm (depth) x 150mm (height). It weighs 1.2kg. It is suitable for machine control solutions. This product is certified by CE, CSA and CULus. It meets EN/IEC 61800-5-1 standards. This product is compatible with servo motor BCH2 (130mm, 3 motor stacks) at 1500W. The Lexium 28 range offers predeterminate combinations to suit the requirements of motion control applications and optimize the performance of the installation. Lexium 28 servo drives and Lexium BCH2 servo motors, optimized servo bundles for compact machines.
