СКУ: LXM28AU01M3X

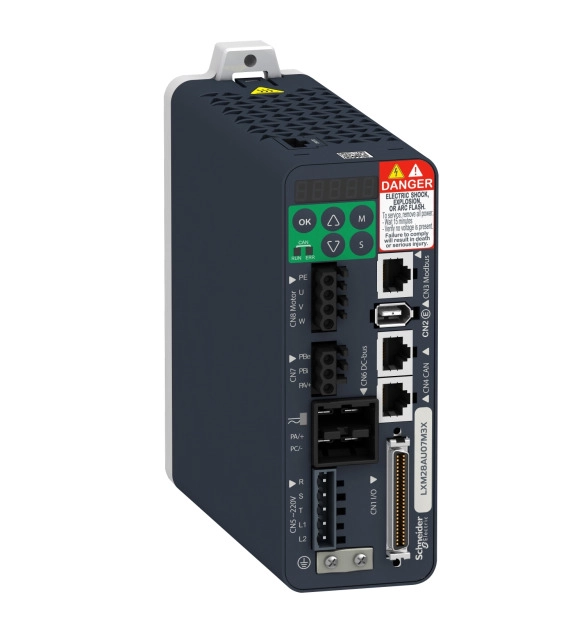

Серво задвижване, Lexium 28, single and three phase 200...230 V, 100 W
-
Brand
Schneider Electric
-
Max. rated operation voltage Ue
400
-
Rated operation frequency
50
-
Degree of protection (IP)
EV006404
-
Number of poles, primary side
3
-
Filtering factor
7
-
Filter bank performance
25
-
Rated current at AC
36.08
-
Max. rated current (Ith) at rated voltage AC
43
The VarPlus detuned reactor are designed to protect the capacitor by preventing the amplification of the harmonics present in the system. Capacitors and Reactors are configured in Series resonant circuit. Tuned so that the series resonant frequency is below the lowest harmonic frequency present in the system. This reactor is rated for 12.5 kVar output power with 2.7/135 Hz tuning order at 400V AC at 50 Hz. Relative impedance, 14 %. This component meet the standards IEC 60068. This component require a forced convection, a fan need to be added. The case dimensions are 220mm in height, 240mm in width and 160mm in depth. For a product weight of 14.5 kg.
