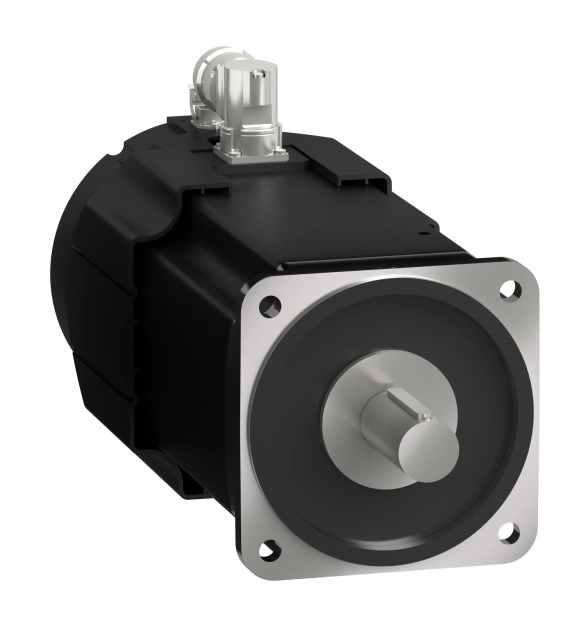

servo motor BMH - 100 Nm - 3000 rpm - untapped shaft - without brake - IP20/IP65

This product is part of the Lexium 32 range, an offer of servo drives paired with motors for motion control. This synchronous motor has a maximum mechanical speed of 3800RPM, a parallel key, an IP54-rated shaft, an IP65-rated housing, and no holding brake. It is equipped with an absolute single-turn encoder, 16 sinusoidal periods per turn. This servo motor is suitable for high-efficiency applications. Its output power is 480V, its continuous stall current is 21.5A, and its continuous power is 6.8W. It is furnished with two rotatable right-angled connectors, 46mm in diameter for the motor connector and 46mm for the encoder connector. Its flange is 205x205mm, and it is a 1-stack length, and it weighs 33kg. This servo motor is suitable for motion and speed applications required in printing, packaging, handling, clamping and material processing. This motor is certified by EN 61800-5-1 2007, EN 60034-1 201O, AC 2010 standards, and conforms to UL. It is compatible with Lexium 32 servo drives type LXM32nD72N4 and pre-assembled cables with connectors, type VW3M5nnnn. It is sold individually. It supports the international standard 205mm flange mount with a natural convection cooling system. Lexium 32 is a range that pairs drives and motors to deliver the right power, performance, and functions in motion control solutions.
