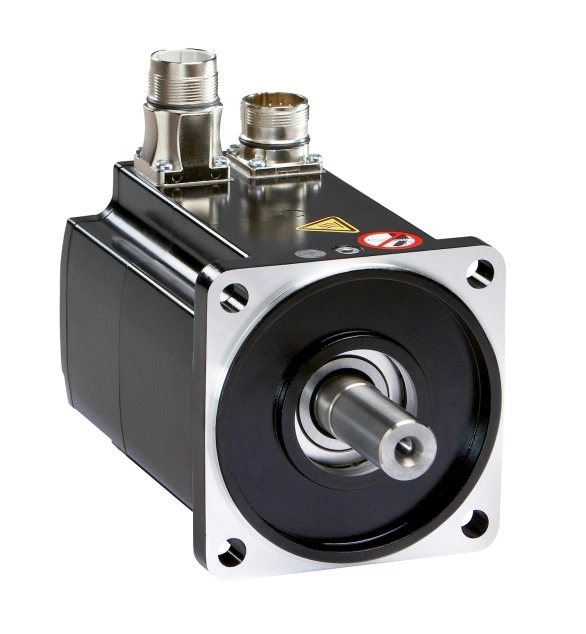

Серво двигател BMH-34.4 Nm-3800 rpm-вал без шпонка-със спирачка-IP65/IP67

This product is part of the Lexium 32 range, an offer of motion servo drives for machines from 0.15kW to 7kW. The 10-pole servo motor features a medium moment of inertia with maximum mechanical speed of 3000RPM, parallel keyed shaft and holding brake. It is equipped with a SinCos Hiperface® encoder (131072 points/turn x 4096 turns) for automatic transmission of data from the servo motor to the servo drive. BMH servo motor is medium inertia motor, it is particularly suitable for high-load applications and allows the movement to be adjusted in a more robust manner. It is a synchronous servo motor with a rated supply voltage of 480V and a continuous stall current of 40A. The shaft dimensions are 38mm (Diameter) x 80mm (Length). It is furnished with rotatable right-angled connectors for electrical connection. It is an IP65 (standard) and IP20 (with fan module) rated product. Its dimensions are 523mm (Length) x 190mm (Width), centring collar dimensions are 4mm (Depth) x 180mm (Diameter) with 215mm circle diameter of the mounting hole. It weighs 64.2kg. This product is compatible with Lexium 32 servo drives. It supports international standard 190mm flange mount with a natural convection cooling system. Encoder gives the absolute position of the motor so that flows can be synchronized and sends data from the servo motor to the servo drive, which provides automatic identification of the motor when the servo drive starts. BMH servo motor with a 3-phase stator and neodymium iron boron (NdFeB) magnets. Casing with RAL 9005 opaque black paint protective coating. 4-point axial mounting flange. Cables and connectors to be ordered separately.
