Серво двигател BMH-3.4 Nm-8000 rpm-вал без шпонка-без спирачка-IP65/IP67 | Spark & Co
  • 3D
|

СКУ: BMH0703T26A2A

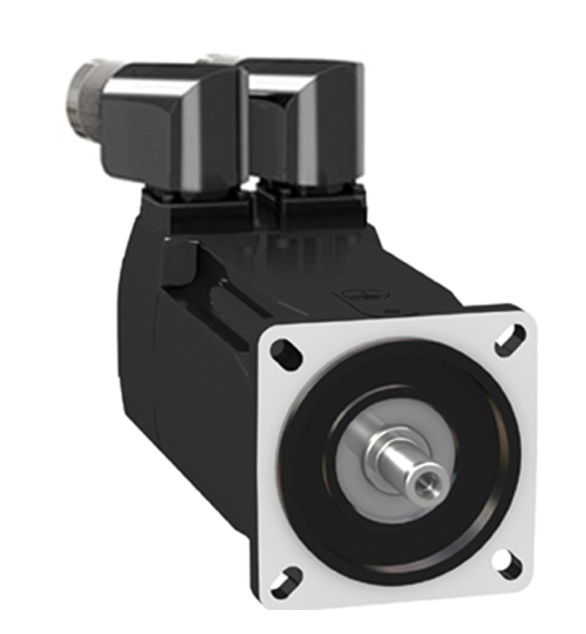

Серво двигател BMH-3.4 Nm-8000 rpm-вал без шпонка-без спирачка-IP65/IP67

  • Brand
    Schneider Electric
  • Number of phases
    3
  • Voltage type
    EV000509
  • Rated current
    10
  • Rated voltage
    240
  • Rated frequency
    50
  • Material housing
    EV000154
  • Degree of protection (IP)
    EV006419
  • Operating temperature
  • Construction type
    EV000154
  • Bearing
    EV000154
  • Model
    EV006582
  • Motor efficiency class
    EV000154
  • Number of poles
    10
  • Overload capability
    FALSE
  • Cooling method
    EV000154
  • Shaft end type
    EV000154
  • Vacuum pressure impregnation (VPI)
    EV000154
  • With positive temperature coefficient resistor (PTC)
    FALSE
  • With resistance temperature detector (RTD)
    FALSE
  • Intrinsic safety (IS)
    EV000494
  • Suitable for frequency control
    FALSE
  • With anti-condensation
    FALSE
  • Duty cycle
    EV000154
  • Rated performance at rated frequency
    0.9
  • Rated rotational speed at rated frequency
    8000
  • Starting torque ratio
  • Breakdown torque ratio
  • Starting current ratio
  • Insulation class according to IEC
    EV000154
  • Nominal torque
    3.1

This product is part of the Lexium 32 range, an offer of motion servo drives and servo motors. This is a servo motor that features a maximum mechanical speed of 6000RPM, an untapped shaft end, with a holding brake. It is equipped with a single-turn encoder type SinCos Hiperface. It has two rotatable right-angle connectors dedicated to power and encoder cables. It has a rated supply voltage of 480V, a continuous stall current of 7.69A, a continuous power of 3.3W, and a continuous stall torque of 8.4Nm. Its degree of protection is IP54 rated. The motor flange size is 100mm, fixed by 4x 9mm holes, the circle diameter of the mounting holes is 115mm and it weighs 8.15kg. This servo motor is designed for Lexium 32 drives. It is certified by UL. It is compatible with LXM32AD30N4, LXM32SD30N4, LXM32MD30N4, and LXM32CD30N4 servo drives. its mounting support is an international standard flange. The Lexium 32 range combines servo drives with motors to provide the right power, performance and functionality at the right price. Lexium 32 simplifies all aspects in the machine lifecycle from engineering to maintenance.
