Серво двигател BMH - 24 Nm - 4000 rpm - с шпонка - без спирачка - IP54

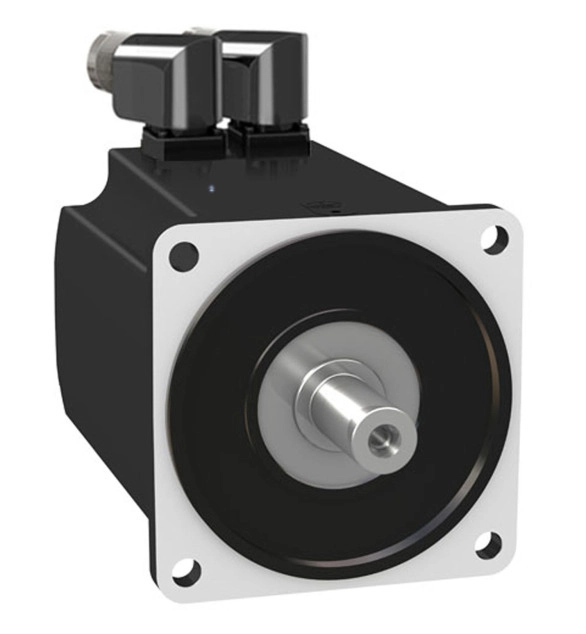

This product is part of the Lexium 32 range, an offer of servo drives paired with motors for motion control. This synchronous motor has a maximum mechanical speed of 3000RPM, a parallel key, an IP65-rated shaft, an IP65-rated housing, and no holding brake. It is equipped with an absolute single-turn encoder, 128 sinusoidal periods per turn. This servo motor is suitable for high-efficiency applications. Its output power is 480V, its continuous stall current is 40A. It is furnished with two rotatable right-angled connectors, 46mm in diameter for the motor connector and 26mm for the encoder connector. Its flange is 190x190mm, and it is a 4-stack length, and it weighs 57.4kg. This servo motor is suitable for motion and speed applications required in printing, packaging, handling, clamping and material processing. This motor is certified by EN 61800-5-1 2007, EN 60034-1 201O, AC 2010 standards, and conforms to UL. It is compatible with Lexium 32 servo drives type LXM32MC10N4 and pre-assembled cables with connectors, type VW3M5nnnn. It is sold individually. It supports the international standard 190mm flange mount with a fan cooling system. Lexium 32 is a range that pairs drives and motors to deliver the right power, performance, and functions in motion control solutions.
