Серво двигател BMH-18.5 Nm-4000 rpm-вал без шпонка-със спирачка-IP65/IP67 | Spark & Co
  • 3D
|

СКУ: BMH1402P22F2A

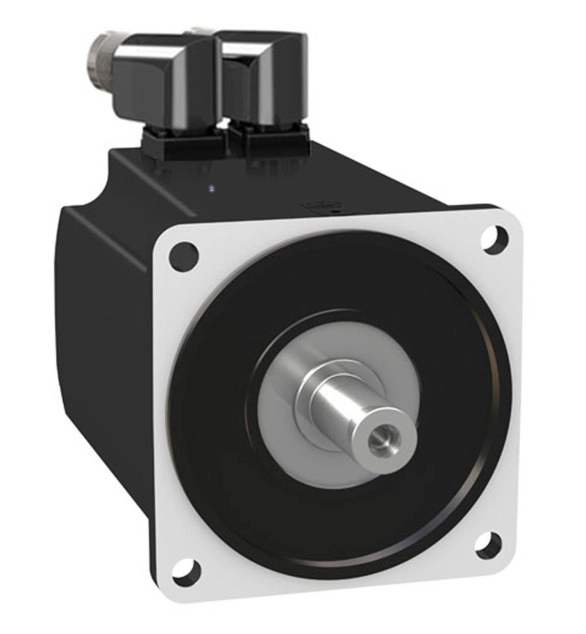

Серво двигател BMH-18.5 Nm-4000 rpm-вал без шпонка-със спирачка-IP65/IP67

  • Brand
    Schneider Electric
  • Degree of protection (IP)
    EV006421
  • Number of phases
    3
  • Voltage type
    EV000509
  • Rated frequency
    50
  • Rated voltage
    480
  • Material housing
    EV000154
  • Construction type
    EV000154
  • Bearing
    EV000154
  • Model
    EV006582
  • Motor efficiency class
    EV000154
  • Number of poles
    10
  • Overload capability
    FALSE
  • Cooling method
    EV000154
  • Shaft end type
    EV000154
  • Vacuum pressure impregnation (VPI)
    EV000154
  • With positive temperature coefficient resistor (PTC)
    FALSE
  • With resistance temperature detector (RTD)
    FALSE
  • Intrinsic safety (IS)
    EV000494
  • Suitable for frequency control
    FALSE
  • With anti-condensation
    FALSE
  • Duty cycle
    EV000154
  • Insulation class according to IEC
    EV000154
  • Rated current
    24
  • Rated rotational speed at rated frequency
    4000
  • Rated performance at rated frequency
    3.5
  • Nominal torque
    12.2
  • Operating temperature
  • Starting torque ratio
  • Breakdown torque ratio
  • Starting current ratio

This product is part of the Lexium 32 range, an offer of motion servo drives and servo motors. This is a servo motor that features a maximum mechanical speed of 4000RPM, an untapped shaft end, with a holding brake. It is equipped with a multi-turn encoder type SinCos Hiperface. It has two rotatable right-angle connectors dedicated to power and encoder cables. It has a rated supply voltage of 480V, a continuous stall current of 16.83A, a continuous power of 4.44W, and a continuous stall torque of 18.5Nm. Shaft end is IP65 rated, and IP67 with an IP67kit. The motor flange size is 140mm, fixed by 4x 11mm holes. The circle diameter of the mounting holes is 165mm. It weighs 14.3kg. This servo motor is designed for Lexium 32 drives. It is certified by UL. It is compatible with LXM32AD72N4, LXM32SD72N4, LXM32MD72N4, and LXM32CD72N4 servo drives. its mounting support is an international standard flange. The Lexium 32 range combines servo drives with motors to provide the right power, performance and functionality at the right price. Lexium 32 simplifies all aspects in the machine lifecycle from engineering to maintenance.
