СКУ: SDD114118
сериен бутон 10A, антрацит
-
Brand
Schneider Electric
-
Number of poles
1
-
Material
EV000139
-
With light source
FALSE
-
Transparent
FALSE
-
Rated current
10
-
Material quality
EV000403
-
With signal lamp
FALSE
-
Nominal voltage
250
-
Mounting method
EV000383
-
Compatible with Apple HomeKit
FALSE
-
Compatible with Google Assistant
FALSE
-
Compatible with Amazon Alexa
FALSE
-
Anti-bacterial treatment
FALSE
-
IFTTT support available
FALSE
-
Surface finishing
EV000146
-
Halogen free
TRUE
-
Surface protection
EV000154
-
Number of contacts as normally open contact
2
-
Suitable for degree of protection (IP)
EV006405
-
Type of fastening
EV006353
-
Label space/information surface
FALSE
-
Min. depth of built-in installation box
40
-
Assembly arrangement
EV006345
-
Colour
EV000309
-
Feedback-signal contact
FALSE
-
Width of device
73
-
Height of device
73
-
Impact strength
EV006808
-
With lighting
FALSE
-
Number of rockers
2
-
RAL-number (similar)
7021
-
Imprint
EV000494
-
Model
EV003155
-
Contactless type
FALSE
-
Connection type
EV000154
-
Depth of device
37
-
Method of operation
EV000200
-
Number of contacts as normally closed contact
-
Number of contacts as change-over contact
-
Number of revolving contacts

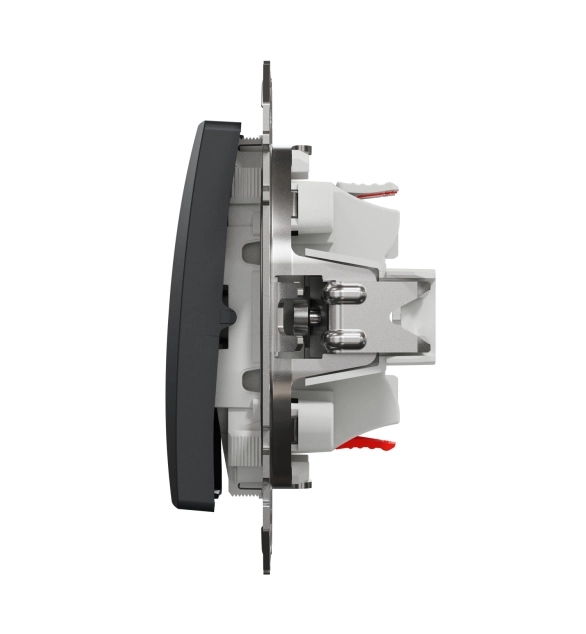

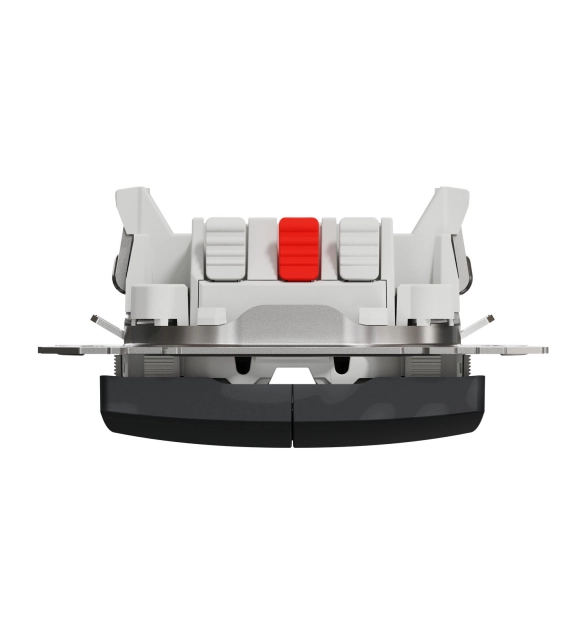

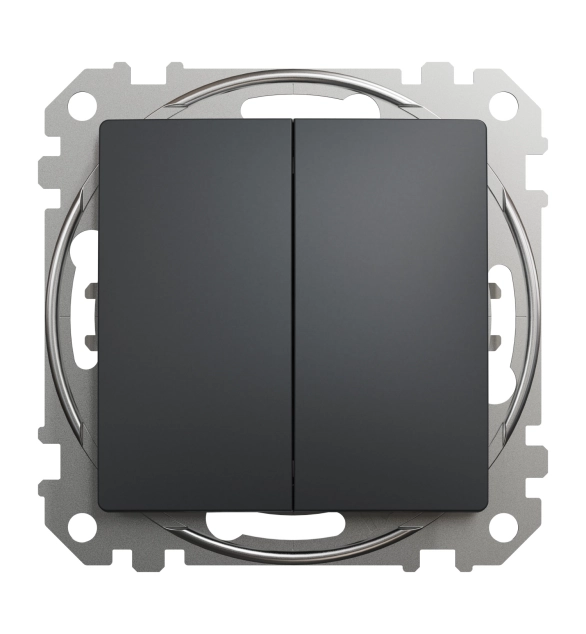

This is Schneider Electric Sedna Design & Elements Push-Button mechanism with fixing frame. This is a double 1-way push-Button. The connection of the device is with screwless terminals. The fixing mode of the device is made with screws and claws. Its Ue rated operational voltage 250VAC at 50/60Hz. Its rated current is 10A. This device is designed to be flush mounted. The dimension of the product is (W) 73mm x (H) 73mm x (D) 37mm. The Projecting depth is 24mm. It is made of thermoplastic ABS-UV stabilized material. The color of the product is anthracite with matt surface finish. It reaches an IP20 degree of protection. Sedna Design & Elements is a new generation of electrical switches inspired by fashion and interior design. With modern lines that reflect today’s trends and a refined aesthetic, Sedna is more than an afterthought. Sedna Design & Elements goes even further in terms of ergonomics, ease of installation and use, reliability and quality finishes. The product complies with the IEC 60669-1 standard. It has GOST-R product certification.
